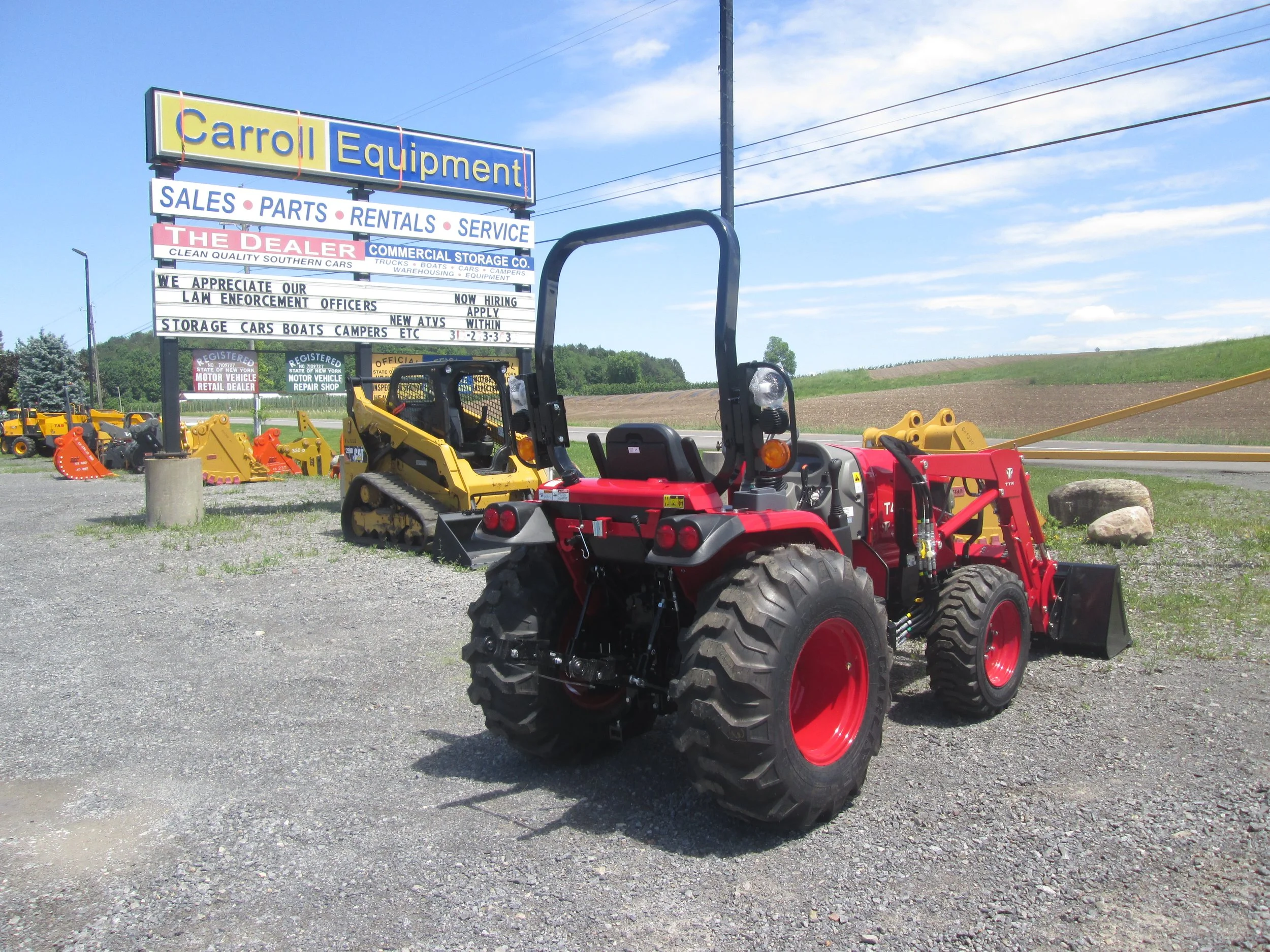

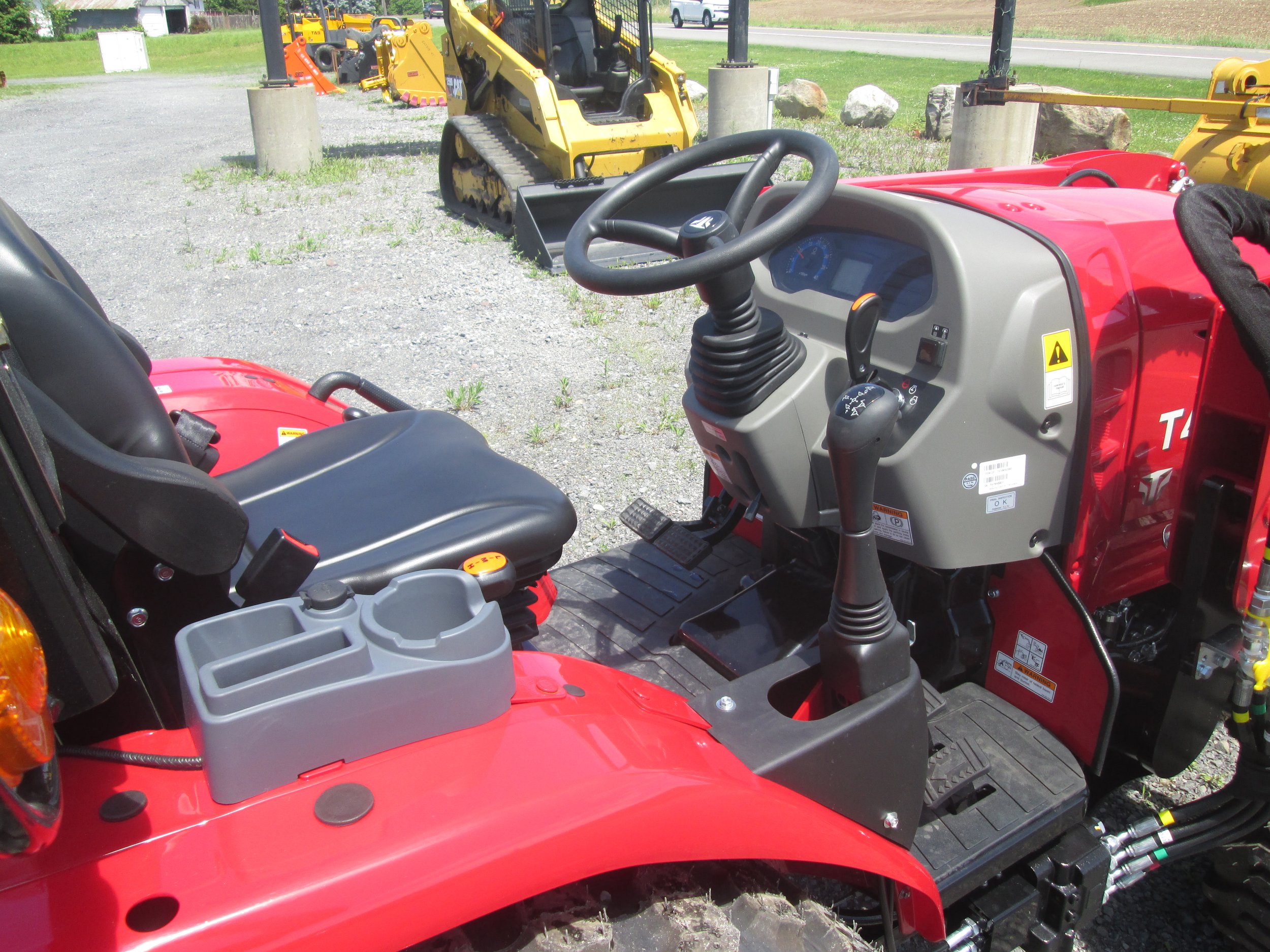

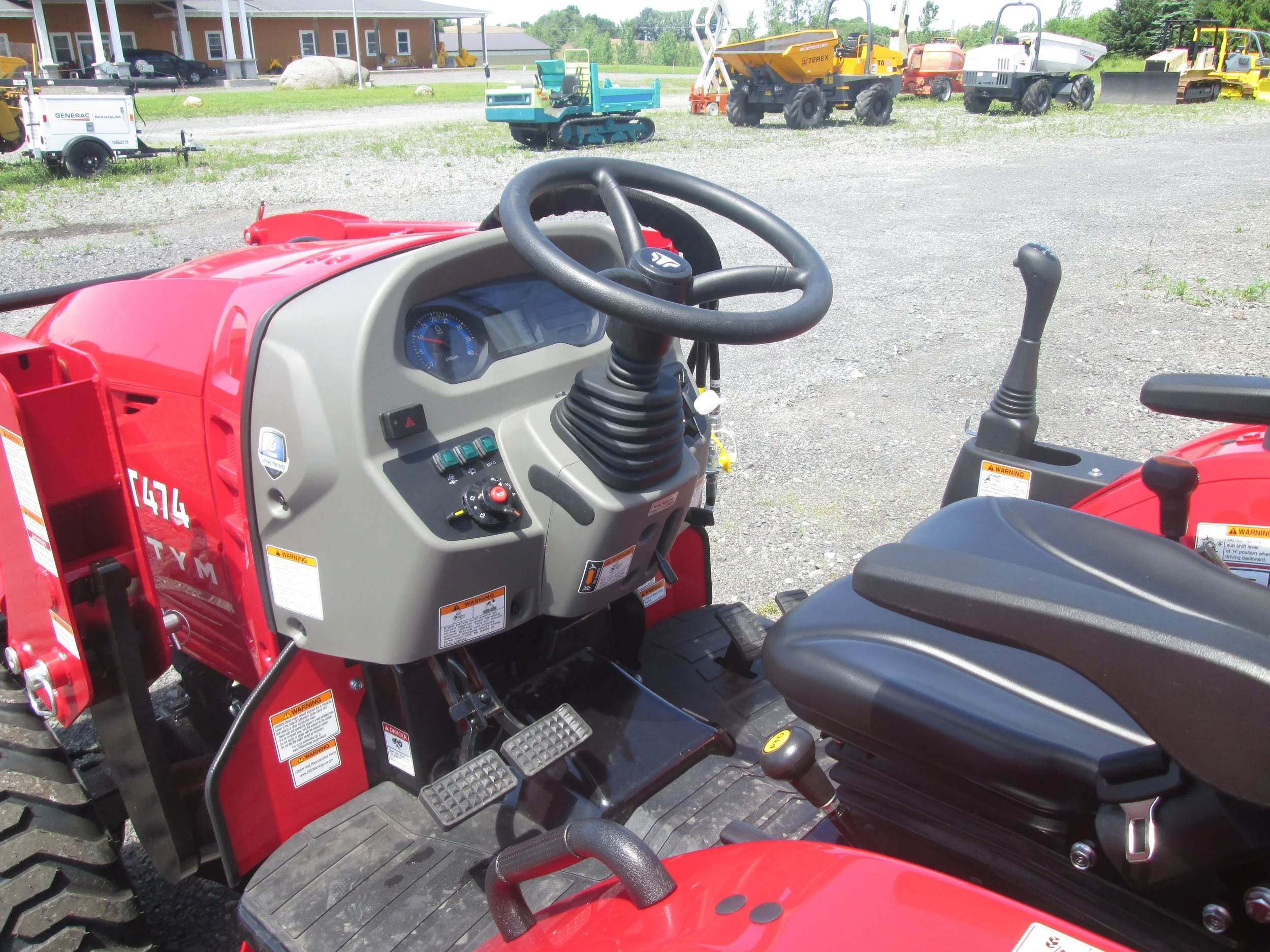

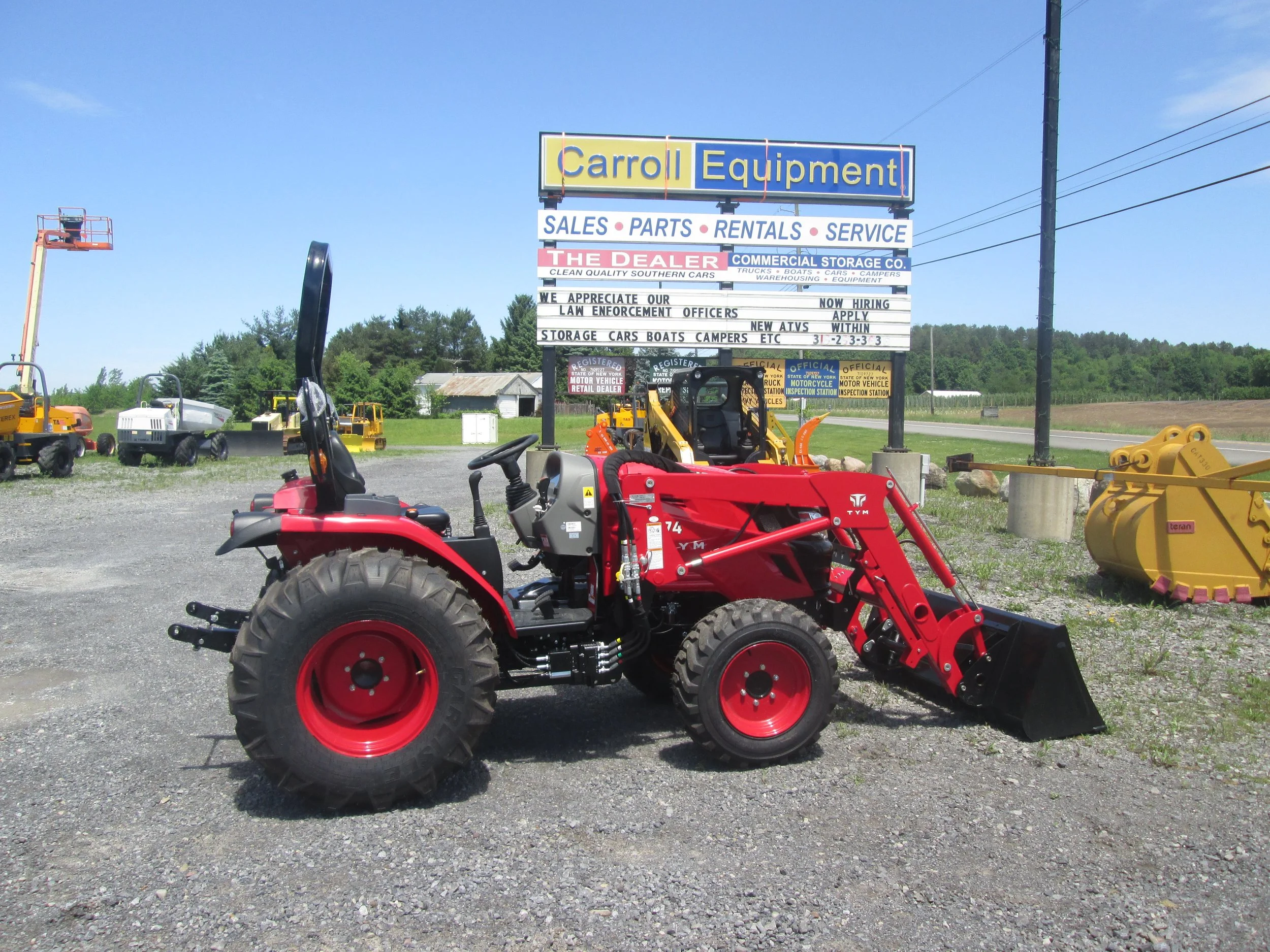

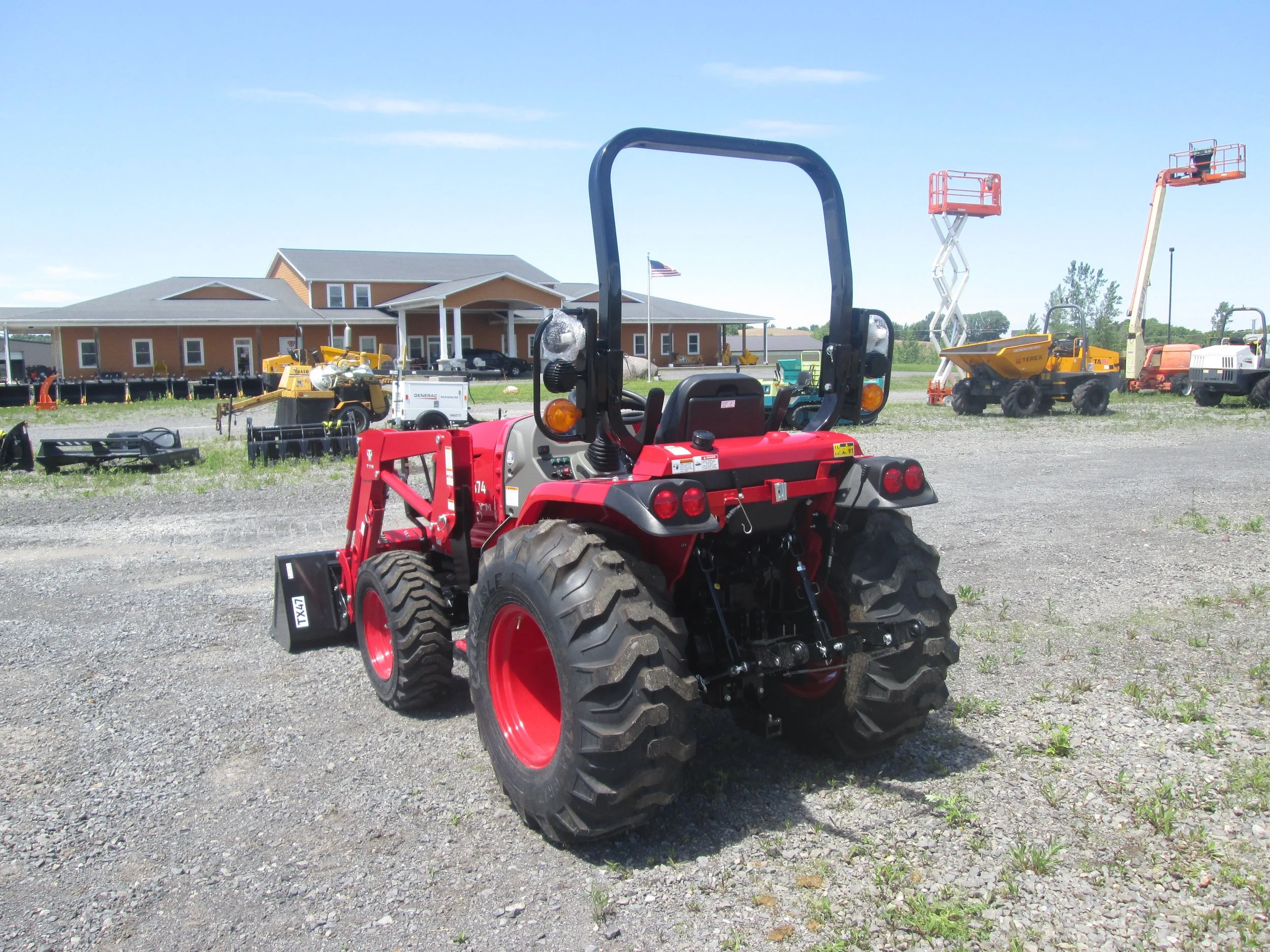

NEW TYM T474HST Tractor Loader/Open Station SN-0295

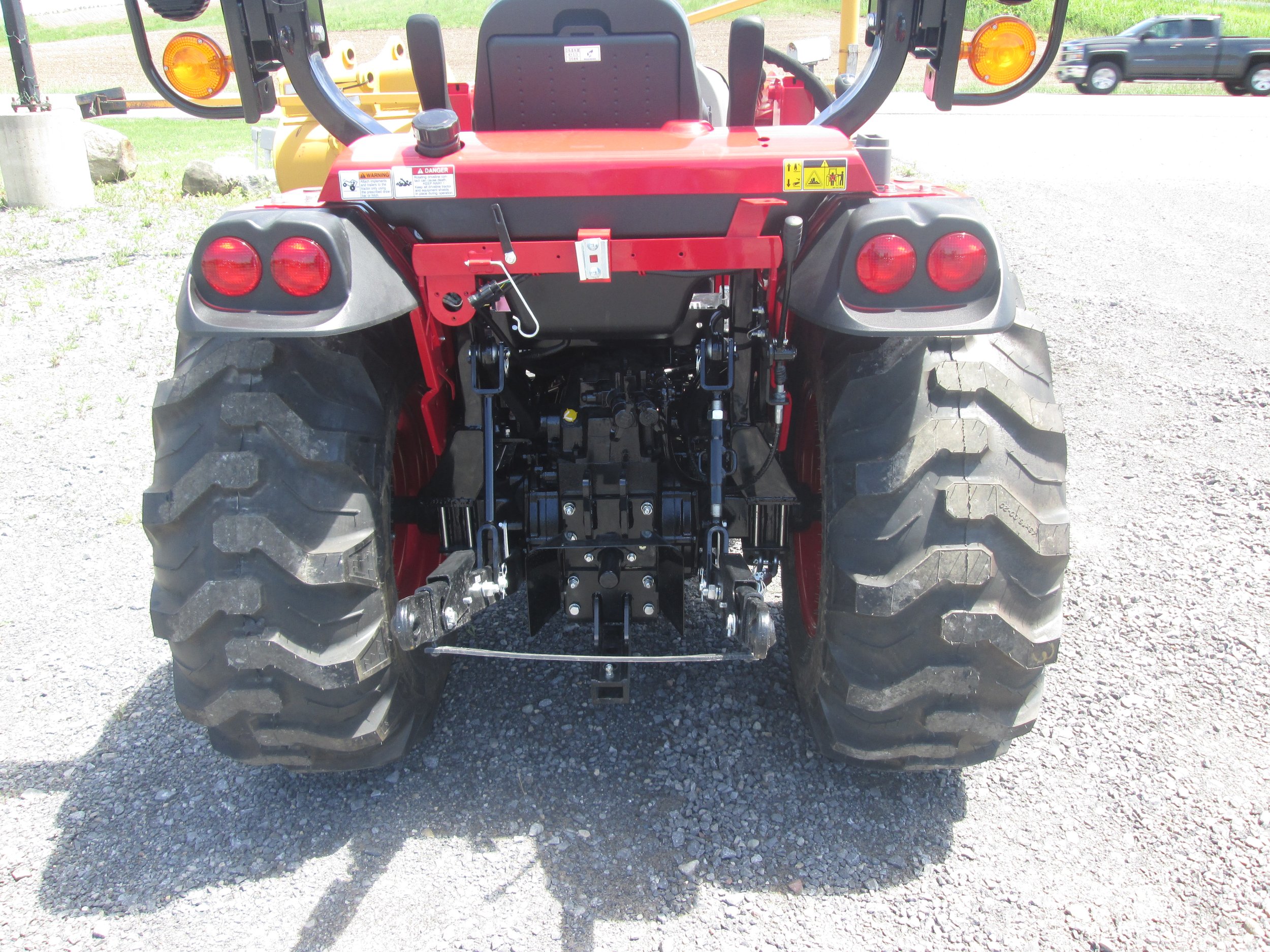

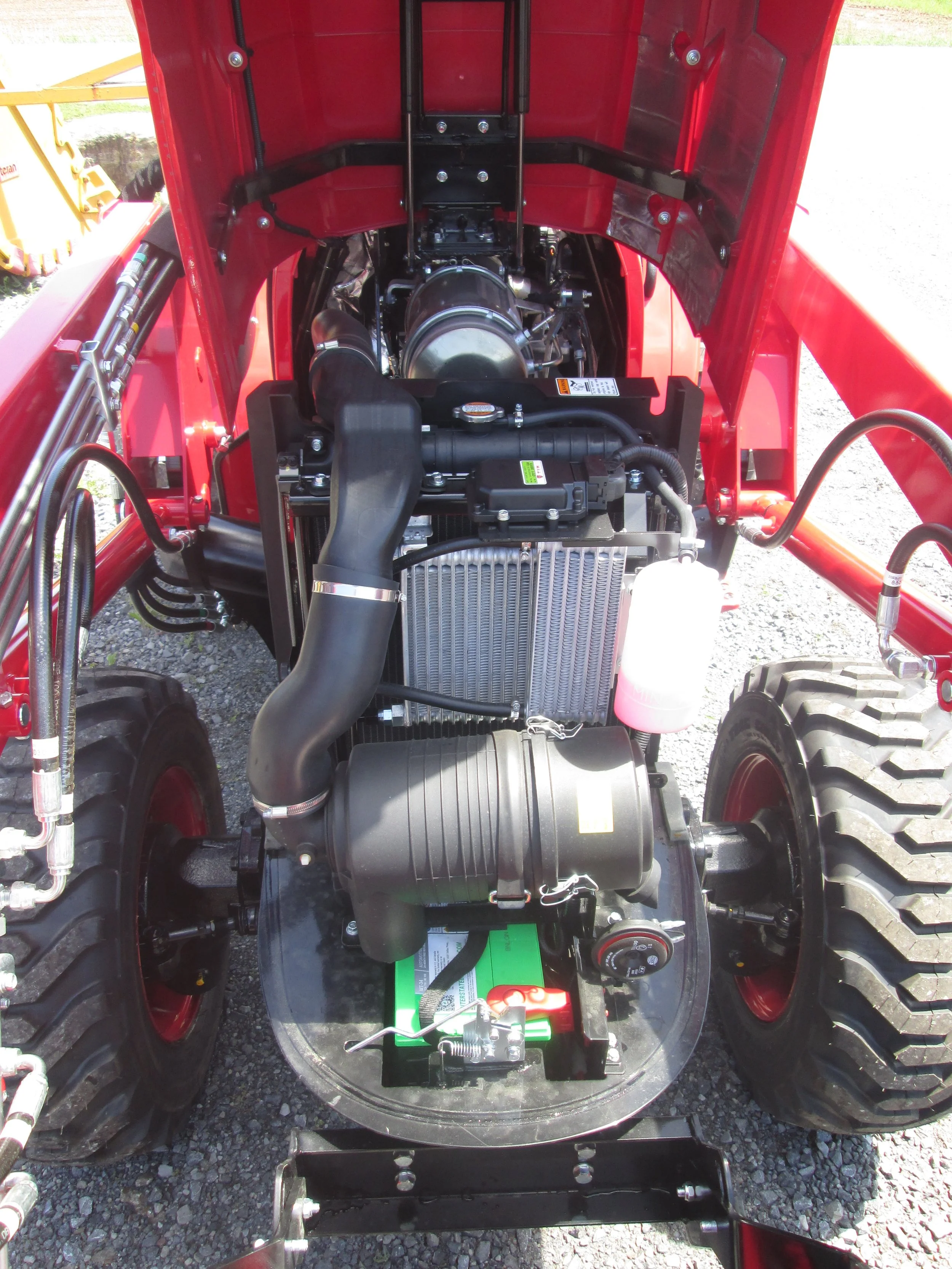

TYM 4 cylinder 48hp diesel engine, 3 speed hydrostatic transmission, 4x4, rear 3pt hitch, rear PTO, rear remote hydraulic 3rd valve, 66” quick couple bucket, quick detach loader, Bluetooth stereo, 12v power supply, work lights, 6 year limited drivetrain warranty!

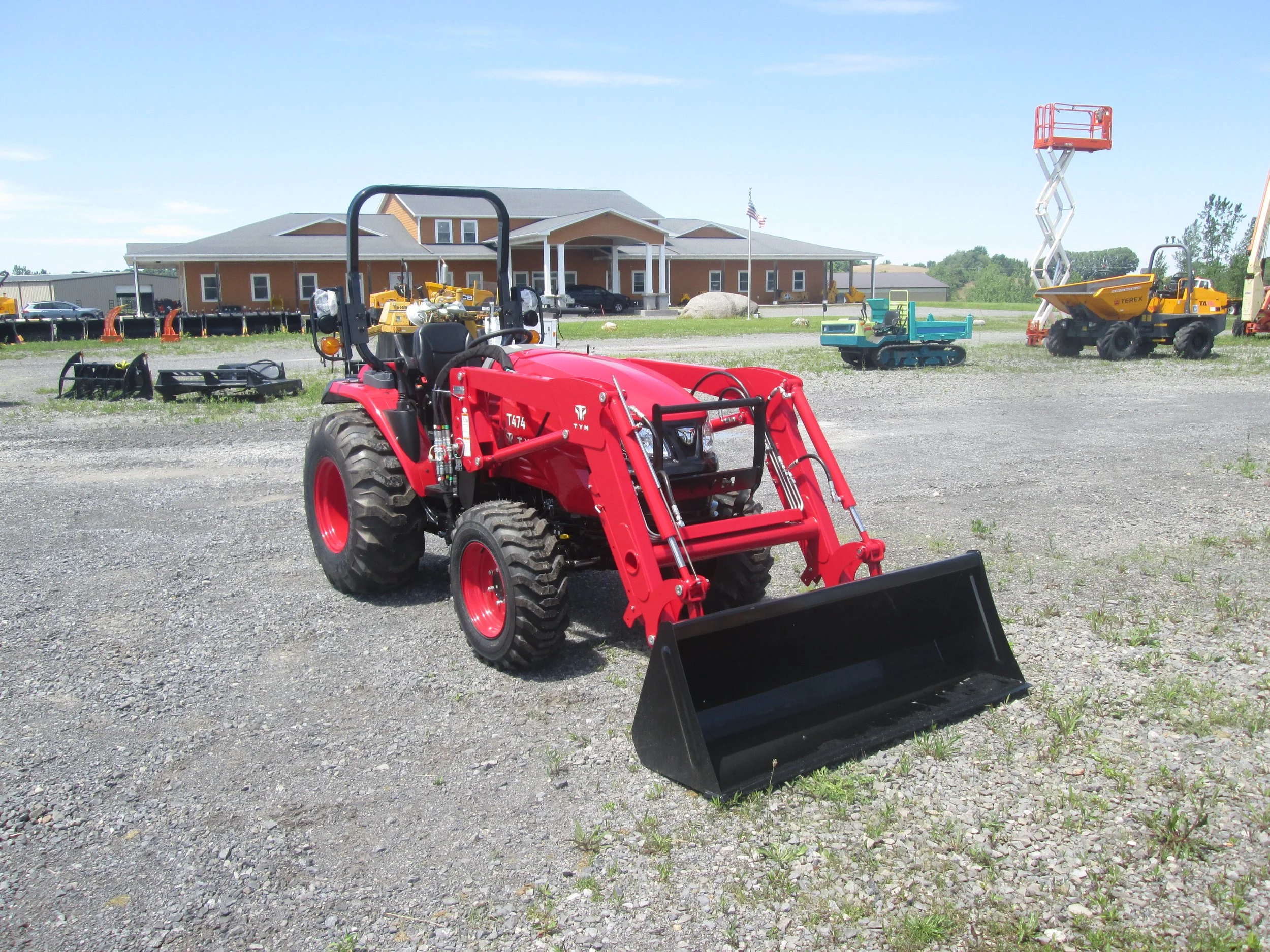

The TX47 front-end loader takes advantage of the power and durability of TYM

compact tractors. Ideal for tasks that require more strength, the TX47 front-end

loader can help you get your tasks done more efficiently.

Lift height

105.6 in. | 2683 mm

Lift capacity at pivot point (max. height)

2152 lb | 976.2 kgf

Bucket capacity

9.9 cu. ft | 0.28 cu. m

CAPACITIES & REACH

Lift height

105.6 in. | 2683 mm

Max. lift height under level bucket

96.5 in. | 2450 mm

Clearance with bucket dumped

80.4 in. | 2042 mm

Reach at maximum lift height

15 in. | 380 mm

Max. dump angle

52°

Reach with bucket on ground

70.7 in. | 1795 mm

Max. rollback angle

35°

Digging depth

10 in. | 255 mm

Lift capacity at pivot point (max. height)

2152 lb | 976.2 kgf

Breakout force at ground level, pivot pins

3198 lb | 1450 kgf

Bucket rollback force at ground line

3012 lb | 1366 kgf

Bucket capacity

9.9 cu. ft | 0.28 cu. m

Relief valve setting (loader control valve)

2347 psi | 165 kg/sq. cm

Compatible bucket sizes

66" Front-end loader bucket

DIMENSIONS & WEIGHTS

Overall height in carry position

55.5 in. | 1409 mm

Depth of Attachment (to the back of the inner shell)

19.4 in. | 492 mm

Height of Attachment

21.9 in. | 556 mm

Length of Attachment (to pivot pin)

25.5 in. | 647 mm

Weight of boom & quick attach mechanism (1)

513.7 lb | 233 kg

Weight of mounting frame (2)

277.8 lb | 126 kg

Weight of bucket (3)

229.3 lb | 104 kg

Loader total weight (1+2+3)

1020.7 lb | 463 kg

Lift cylinder

2.2 × 1.2 in. | 55 × 30 mm

Bucket cylinder

1.97 × 1.2 in. | 50 × 30 mm

Attachment used for specification

66 in. | 1675 mm

CYCLE TIMES

Boom raising time5.4 sec

Boom lowering time3.8 sec

Bucket rollback time2.5 sec

Bucket dumping time4.0 sec

TYM’s multi-purpose buckets are capable of bulldozing, scraping, loading, metering,

moving and clamping material.

60” Front-End Loader bucket
