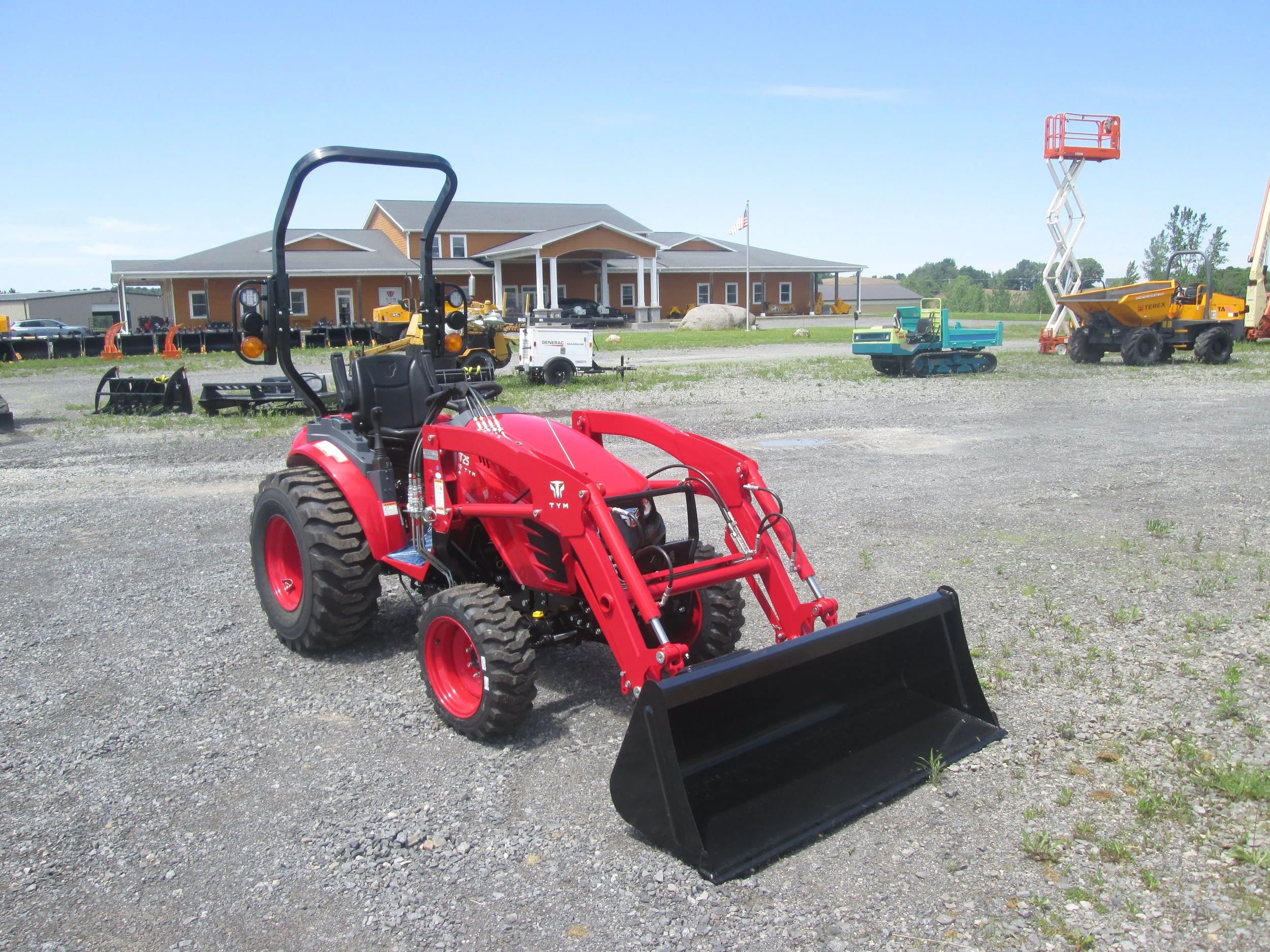

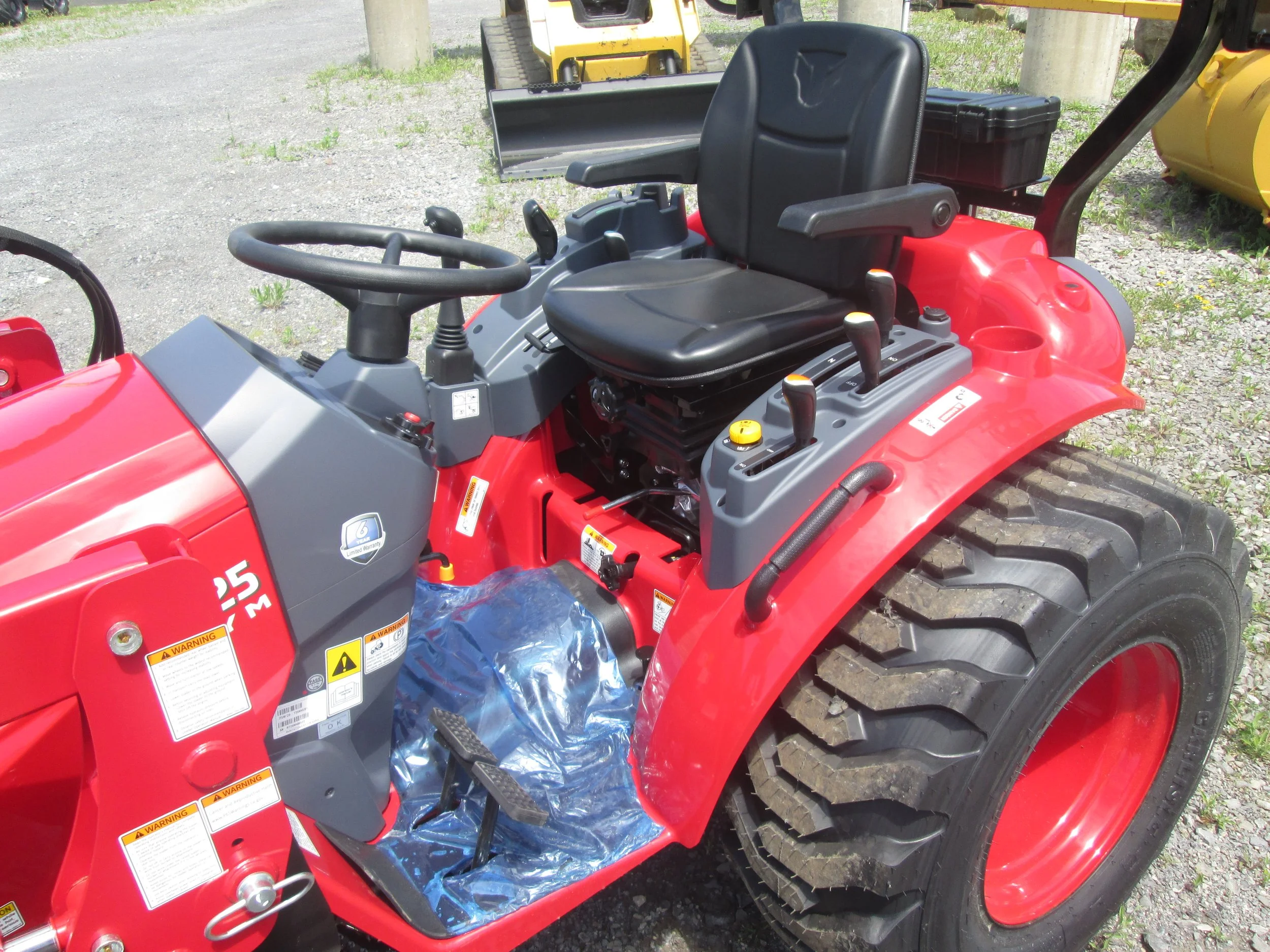

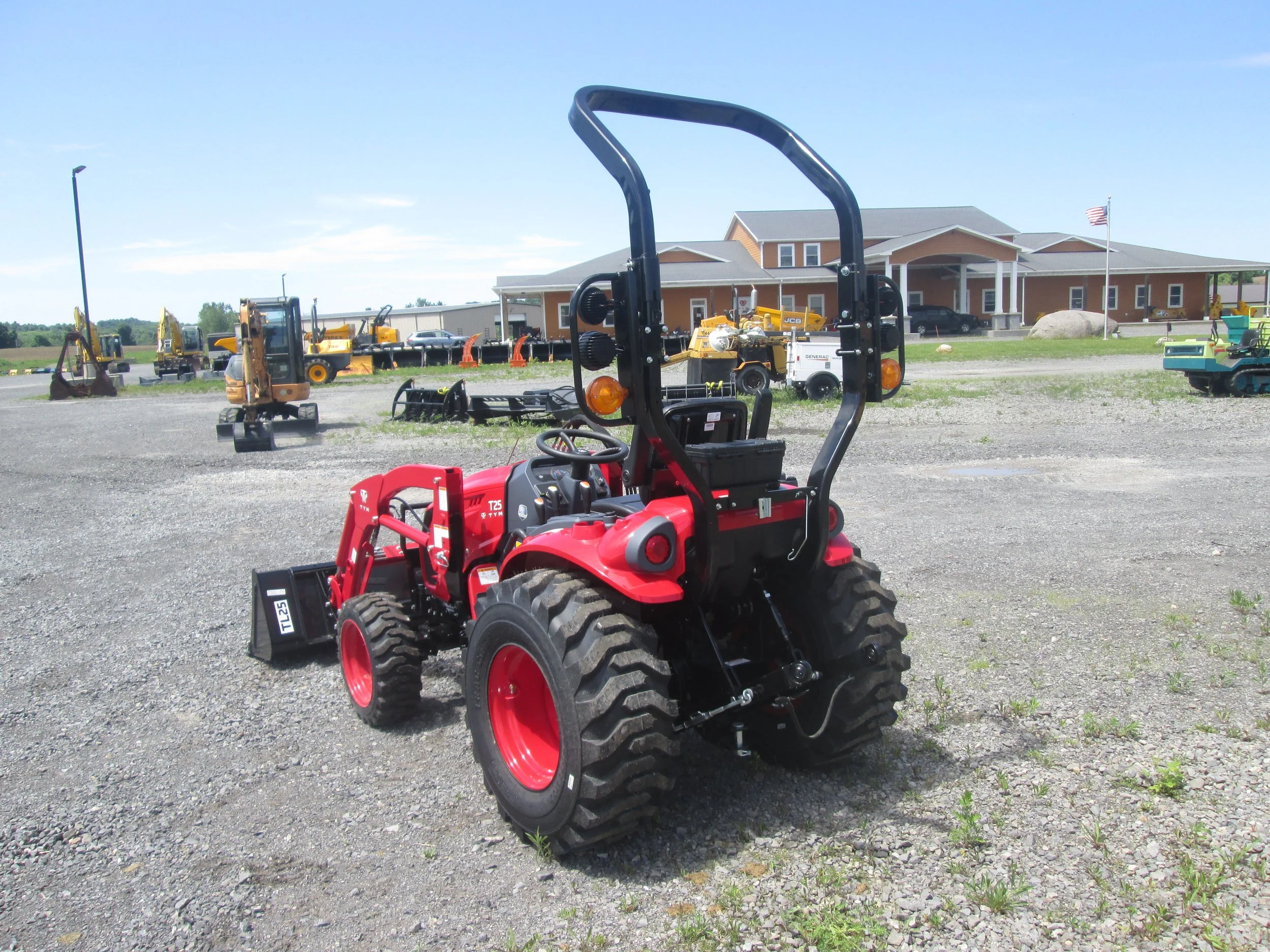

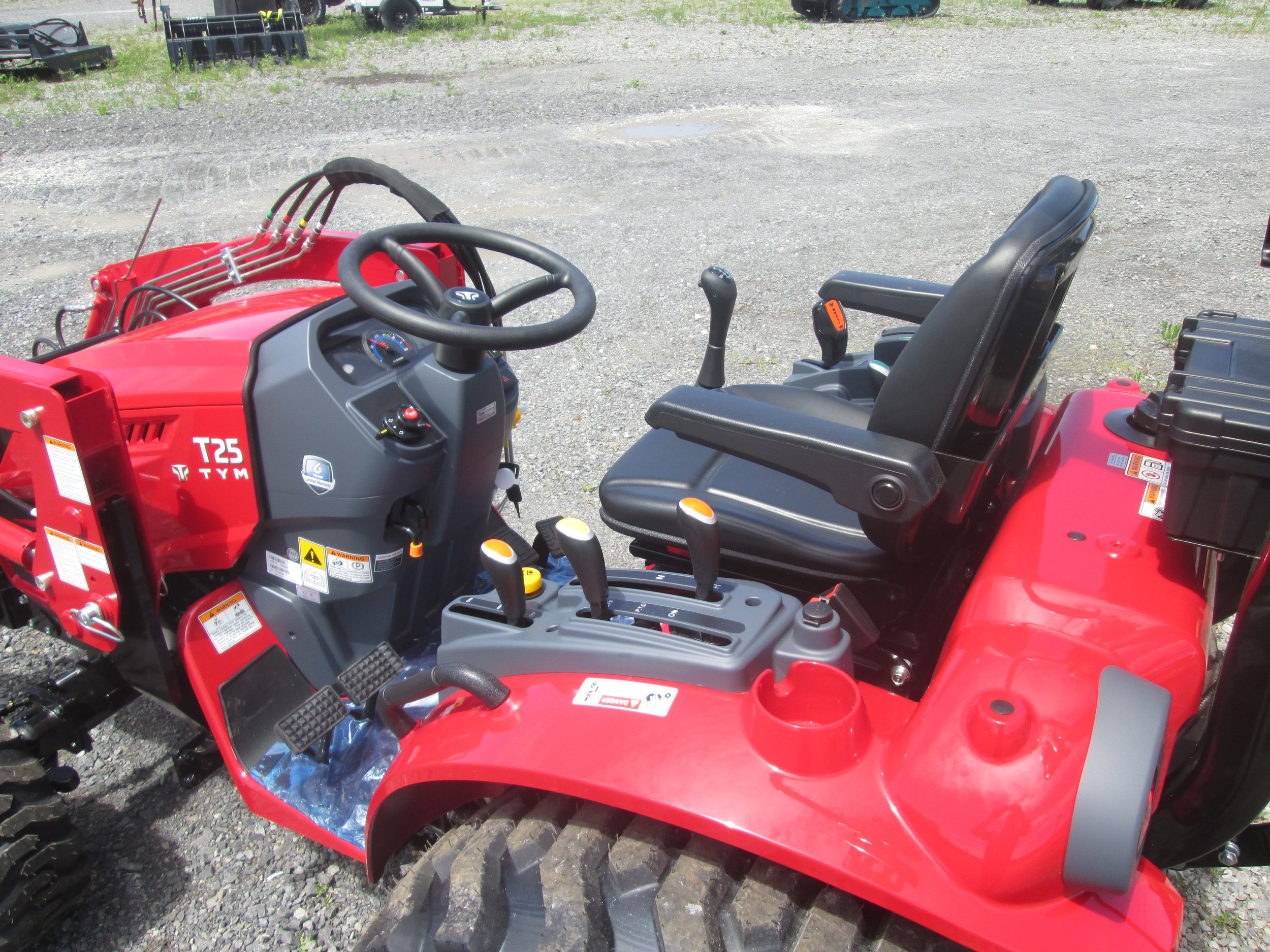

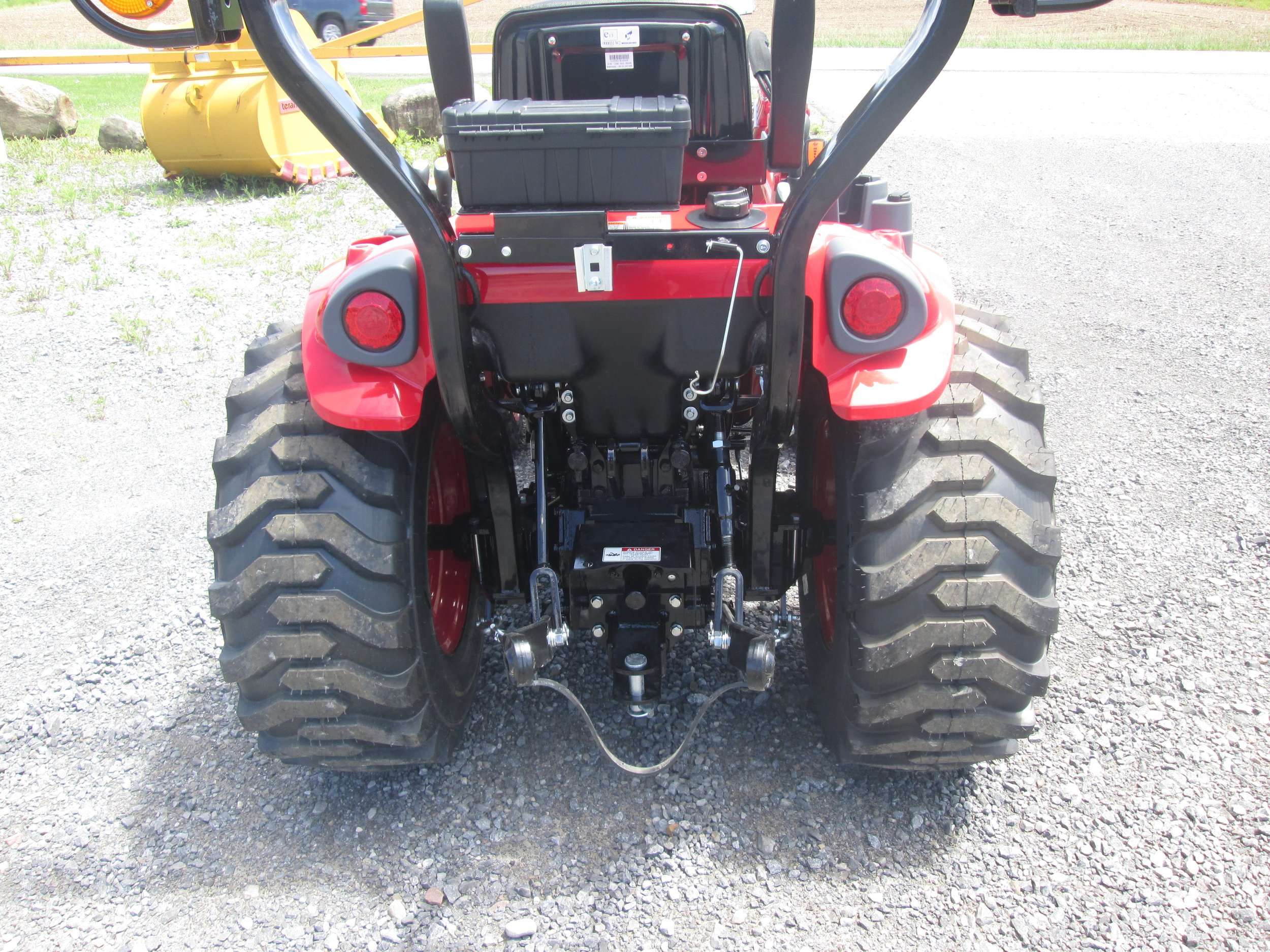

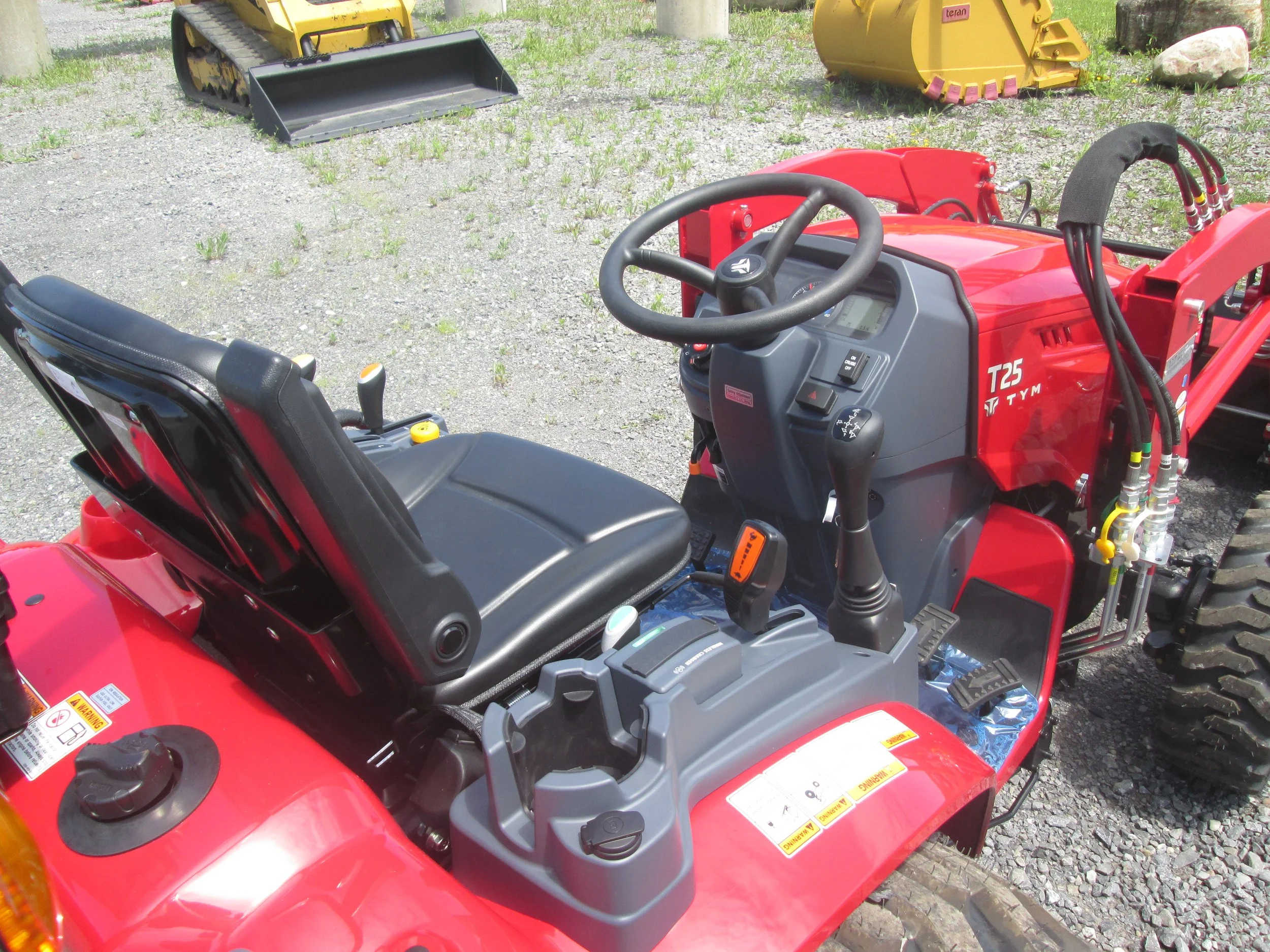

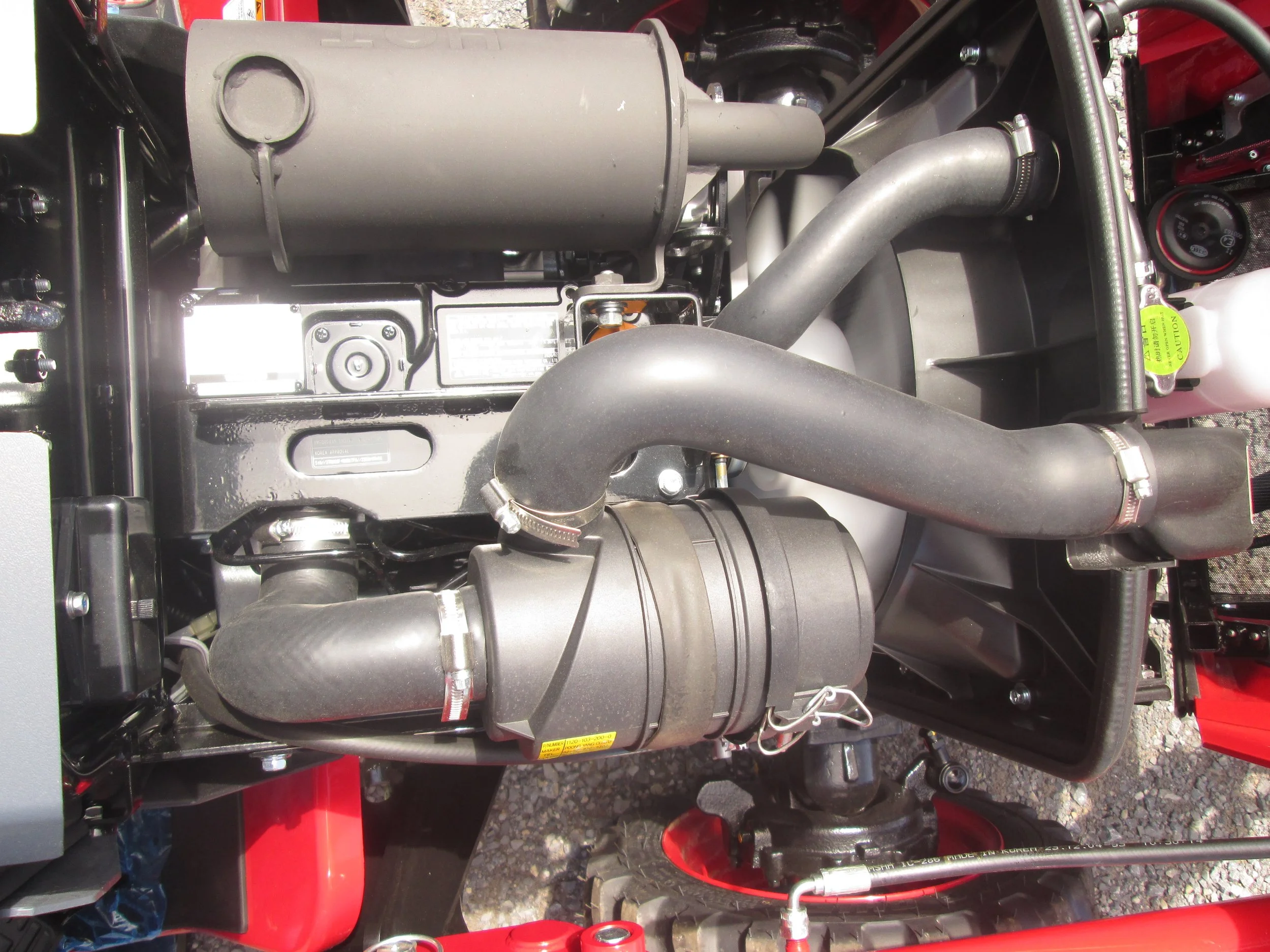

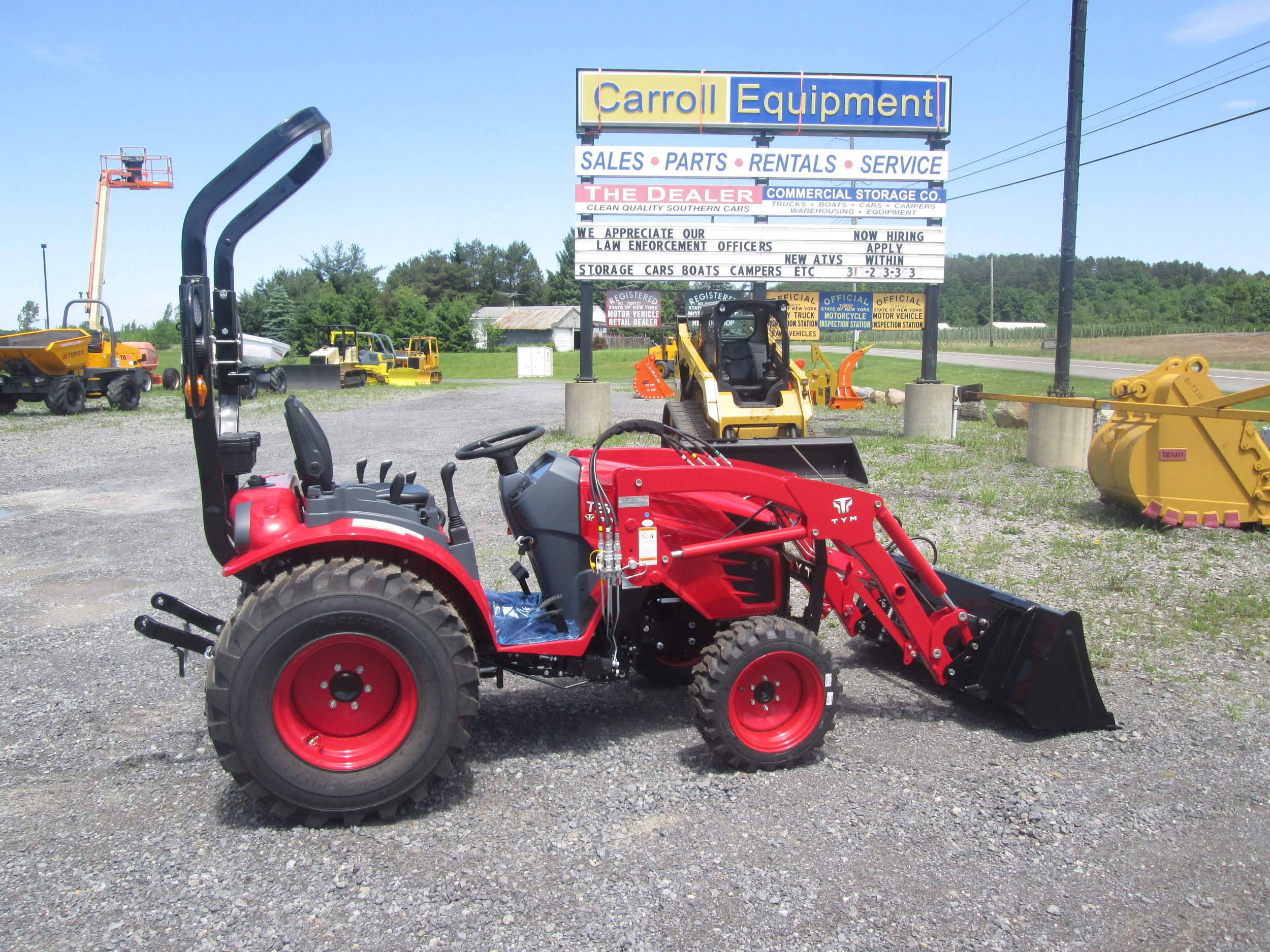

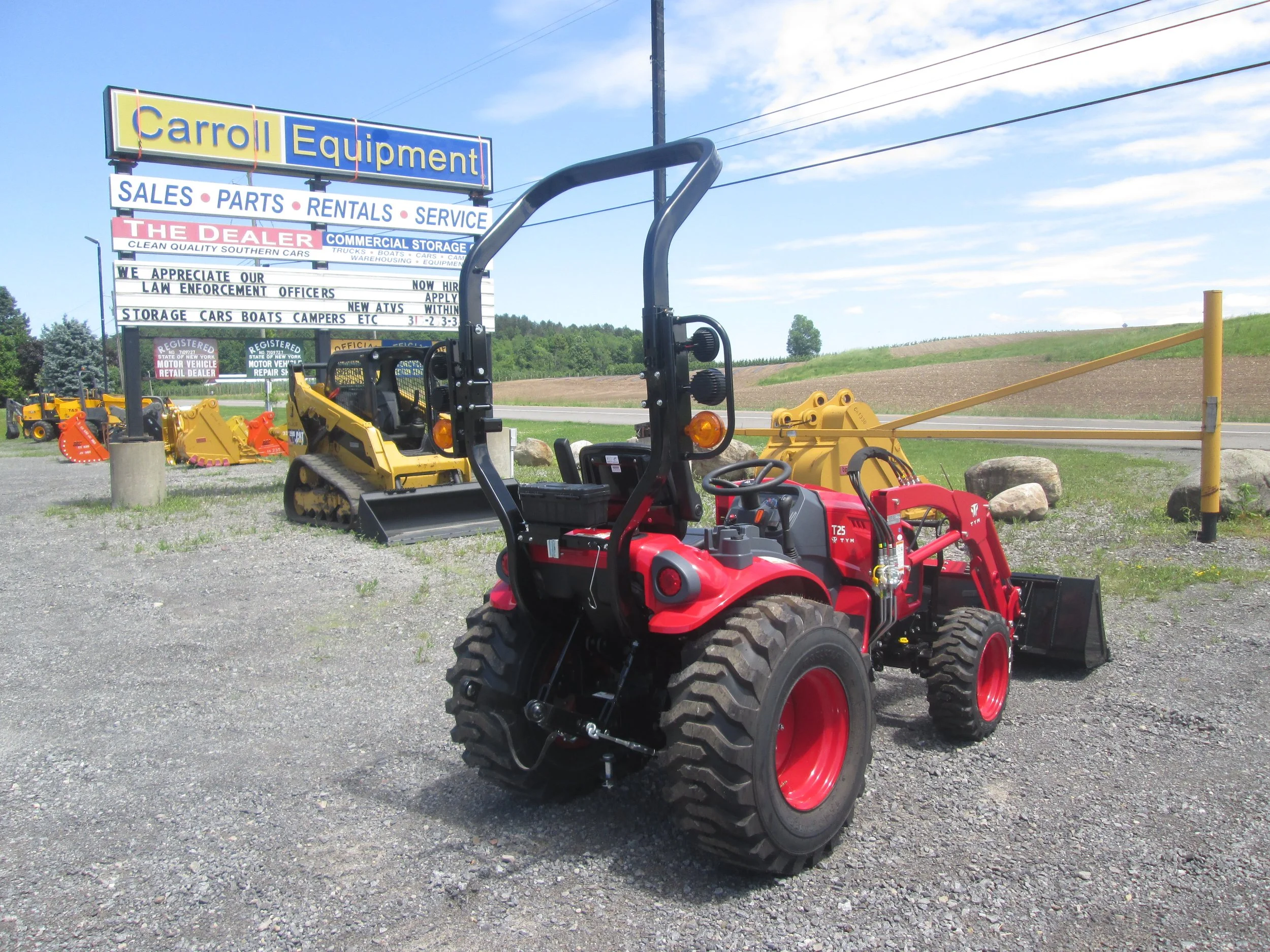

3 cylinder 24.7hp Yanmar diesel engine, 2 speed hydrostatic transmission, 4x4, rear PTO, rear hydraulic 3rd valve, fold down ROPS, 60” quick couple bucket, quick detach loader, Bluetooth speakers, 2 USB ports, wireless phone charger, work lights. The tractor and loader both weigh approximately 2,500lbs. 6 year limited drivetrain warranty!

Enhance the functionality of your T25 sub-compact tractor with TL25.

With its impressive lift capacity and height, the TL25 front-end loader can help you handle heavier loads of materials.

Lift height87.2 in. | 2215 mm

Lift capacity at pivot point (max. height) 1380 lb | 626 kgf

Bucket capacity 6.7 cu. ft | 0.19 cu. M

CAPACITIES & REACH

Lift height

87.2 in. | 2215 mm

Max. lift height under level bucket

81.3 in. | 2065 mm

Clearance with bucket dumped

65.3 in. | 1658 mm

Reach at maximum lift height

23.7 in. | 601 mm

Max. dump angle

50°

Reach with bucket on ground

57.7 in. | 1465 mm

Max. rollback angle

30°

Digging depth

4.0 in. | 102 mm

Lift capacity at pivot point (max. height)

1380 lb | 626 kgf

Breakout force at ground level, pivot pins

2059 lb | 934 kgf

Bucket rollback force at ground line

1596 lb | 724 kgf

Bucket capacity

6.7 cu. ft | 0.19 cu. m

Self leveling NA

Relief valve setting (loader control valve)

2276 psi | 160 kg/sq. cm

Compatible bucket sizes

66" Front-end loader bucket

DIMENSIONS & WEIGHTS

Overall height in carry position

46.5 in. | 1180 mm

Depth of Attachment (to the back of the inner shell)

18.4 in. | 467 mm

Height of Attachment

19.1 in. | 484 mm

Length of Attachment (to pivot pin)

24.6 in. | 626 mm

Weight of boom & quick attach mechanism (1)

363.8 lb | 165 kg

Weight of mounting frame (2)

138.9 lb | 63 kg

Weight of bucket (3)

176.4 lb | 80 kg

Loader total weight (1+2+3)

680 lb | 308 kg

Lift cylinder

1.8 × 1.2 in. | 45 × 30 mm

Bucket cylinder

1.97 × 1.2 in. | 50 × 30 mm

Attachment used for specification

59 in. | 1492 mm

CYCLE TIMES

Boom raising time 4.1 sec

Boom lowering time 2.3 sec

Bucket rollback time 2.6 sec

Bucket dumping time 4.1 sec

COMPATIBLE BUCKET SIZES

TYM's multi-purpose buckets are capable of bulldozing, scraping, loading,

metering, moving, and clamping material.

60" Front-End Loader bucket
