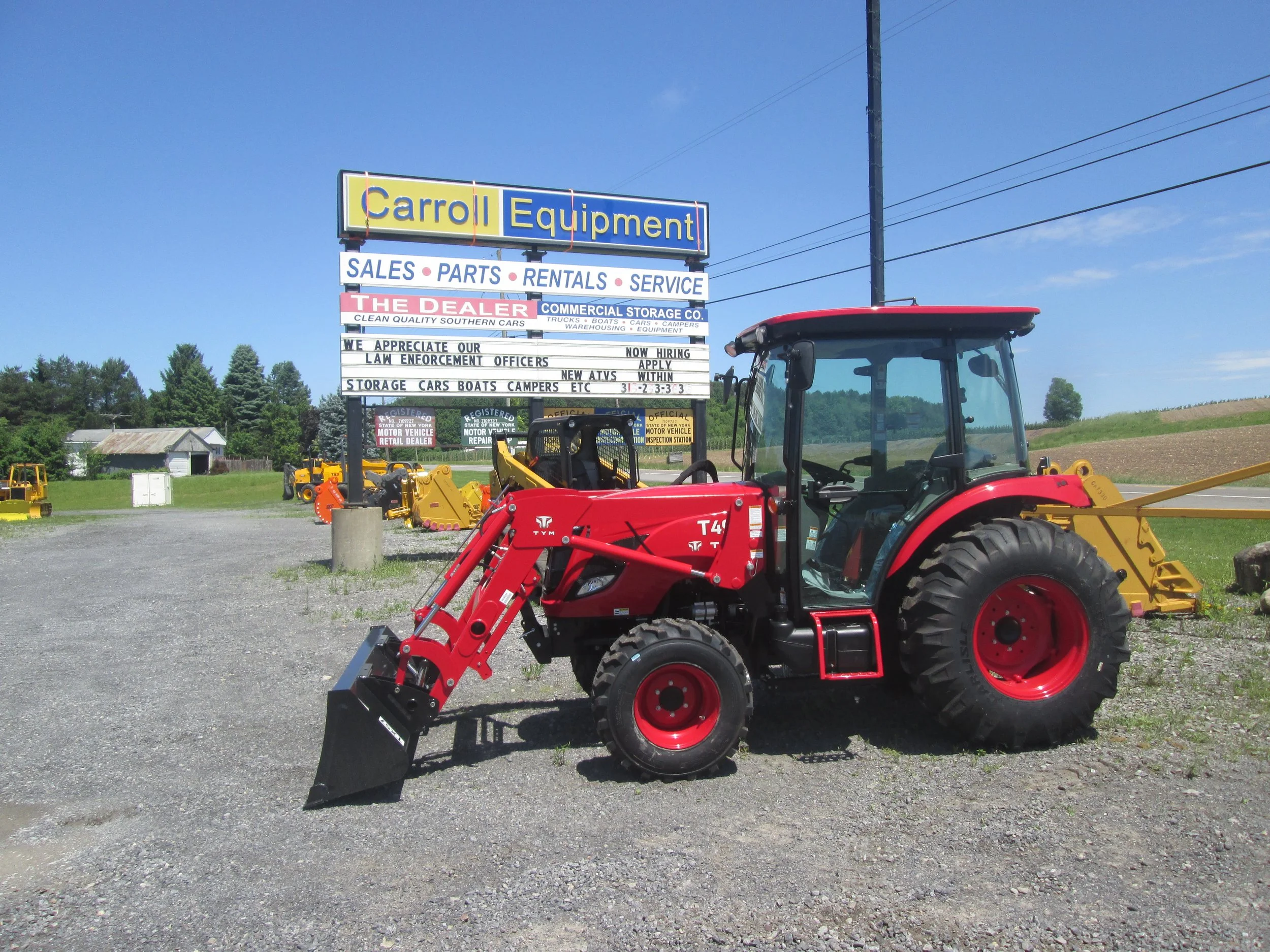

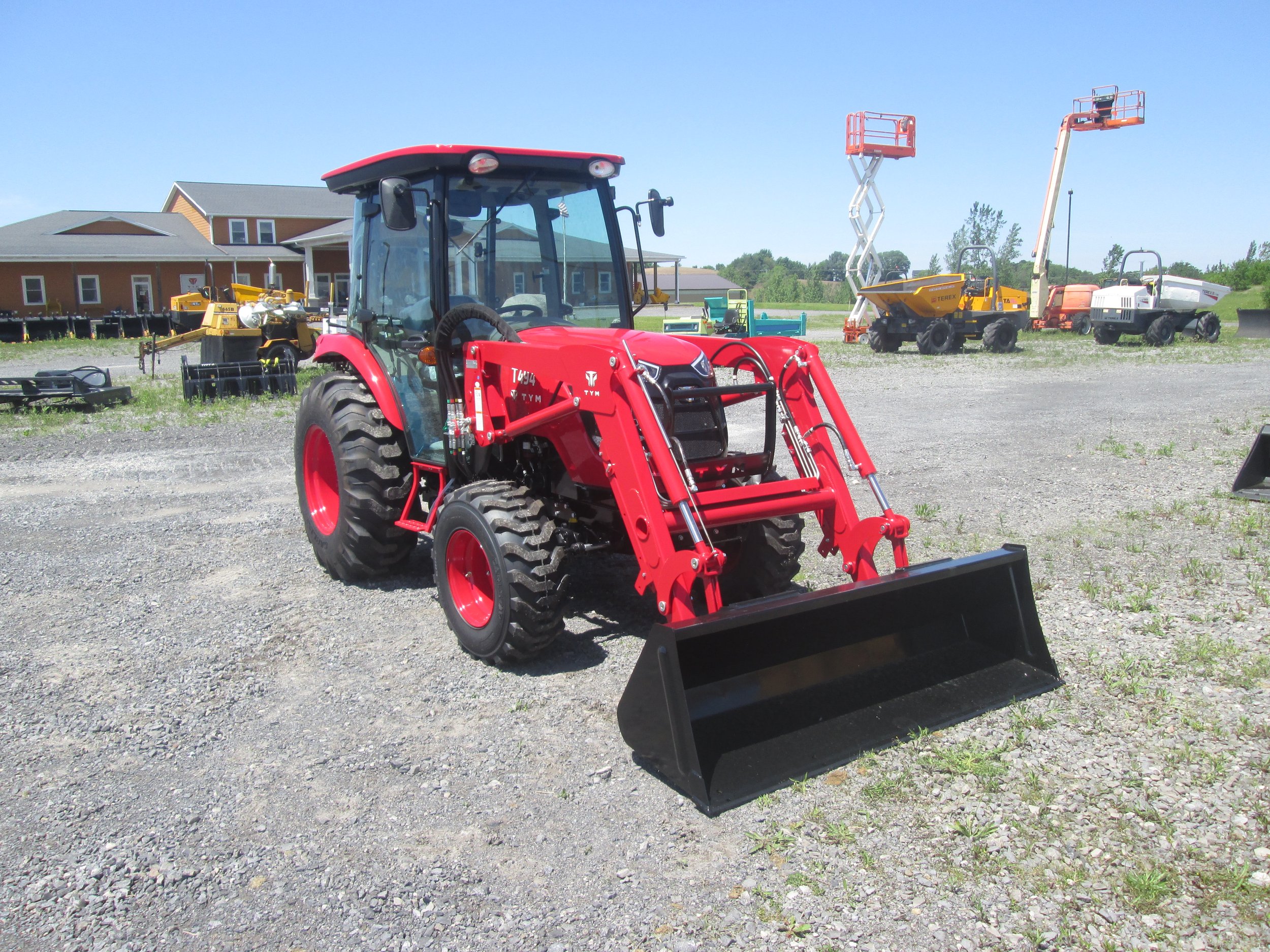

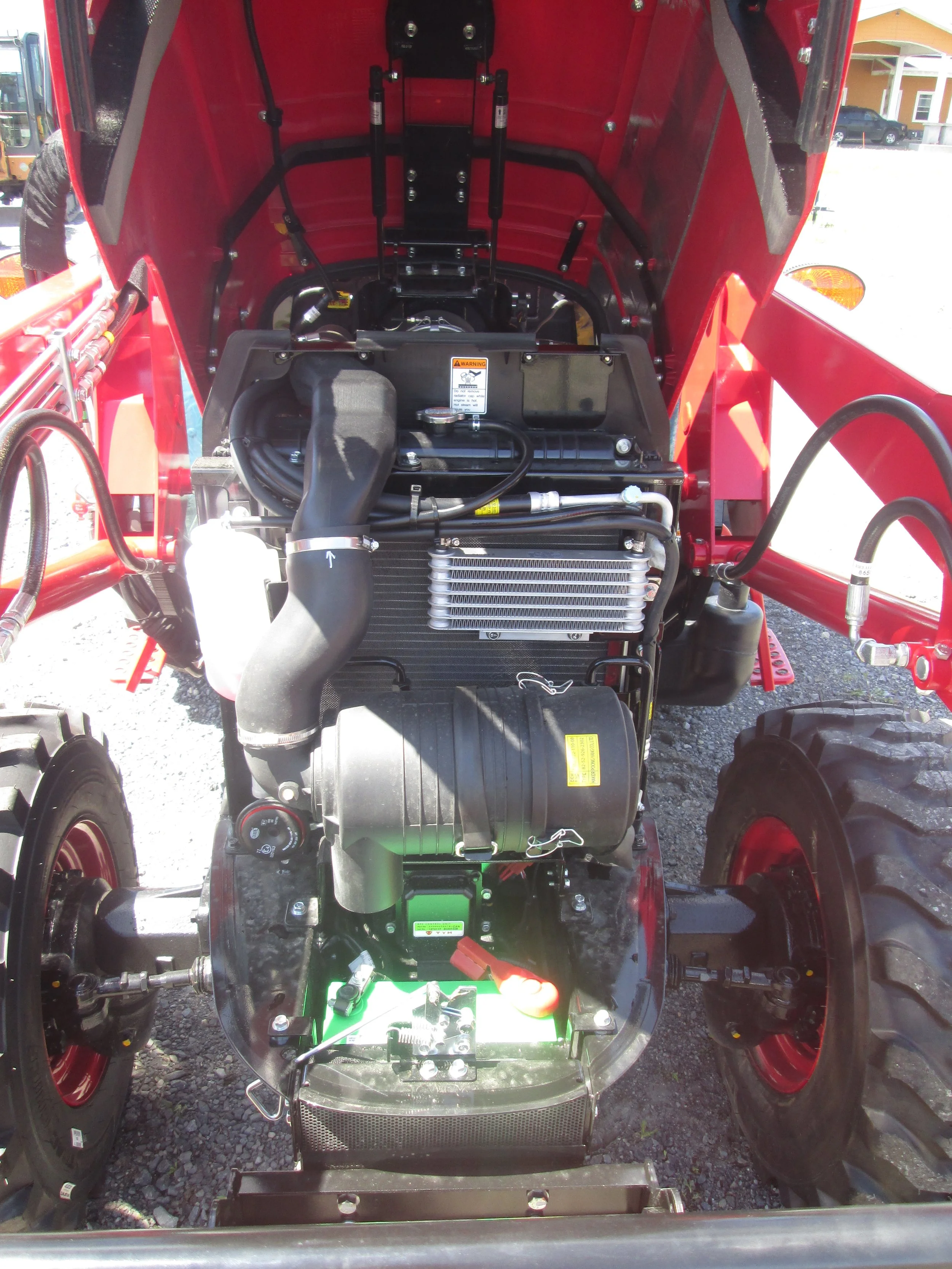

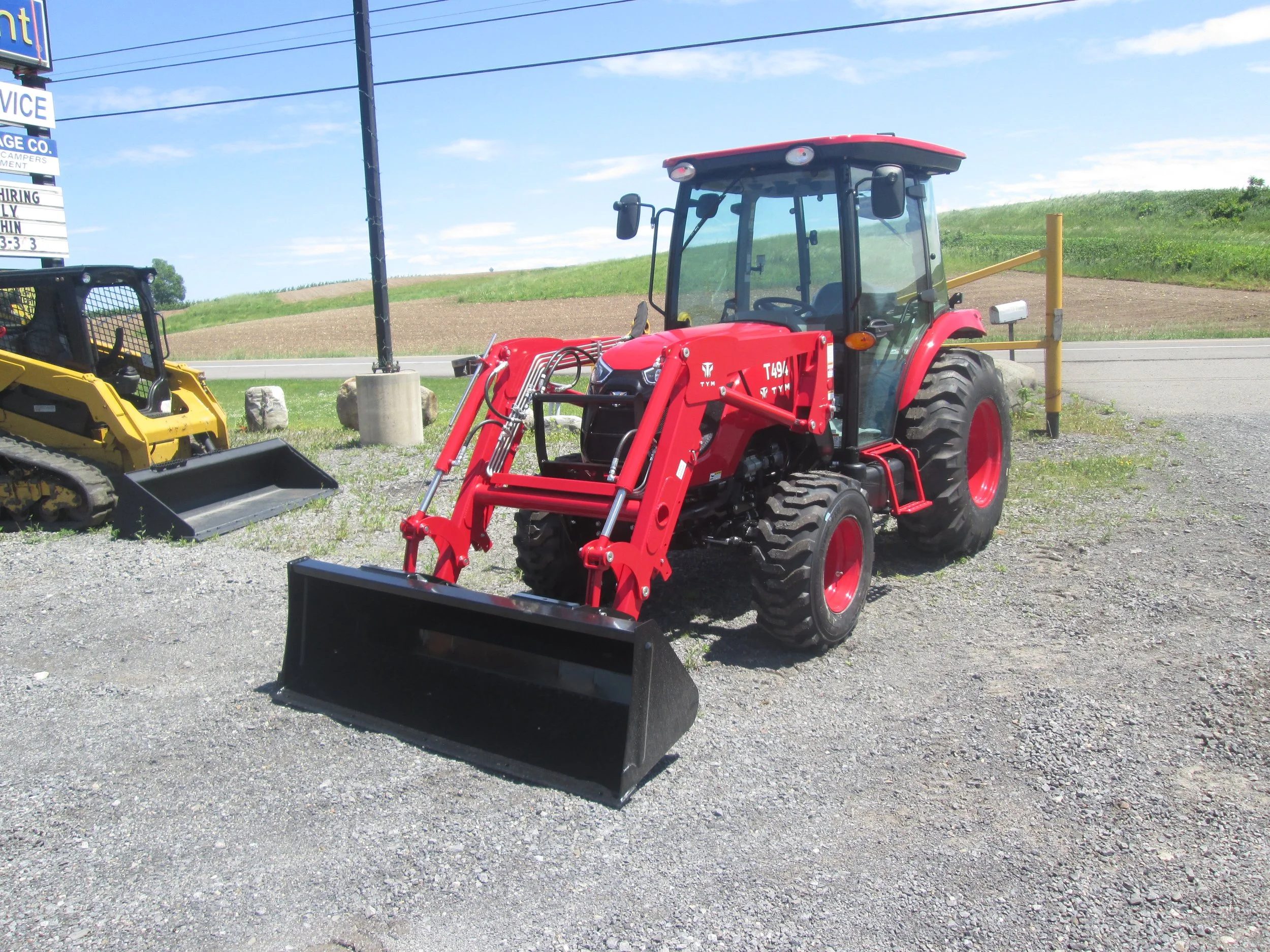

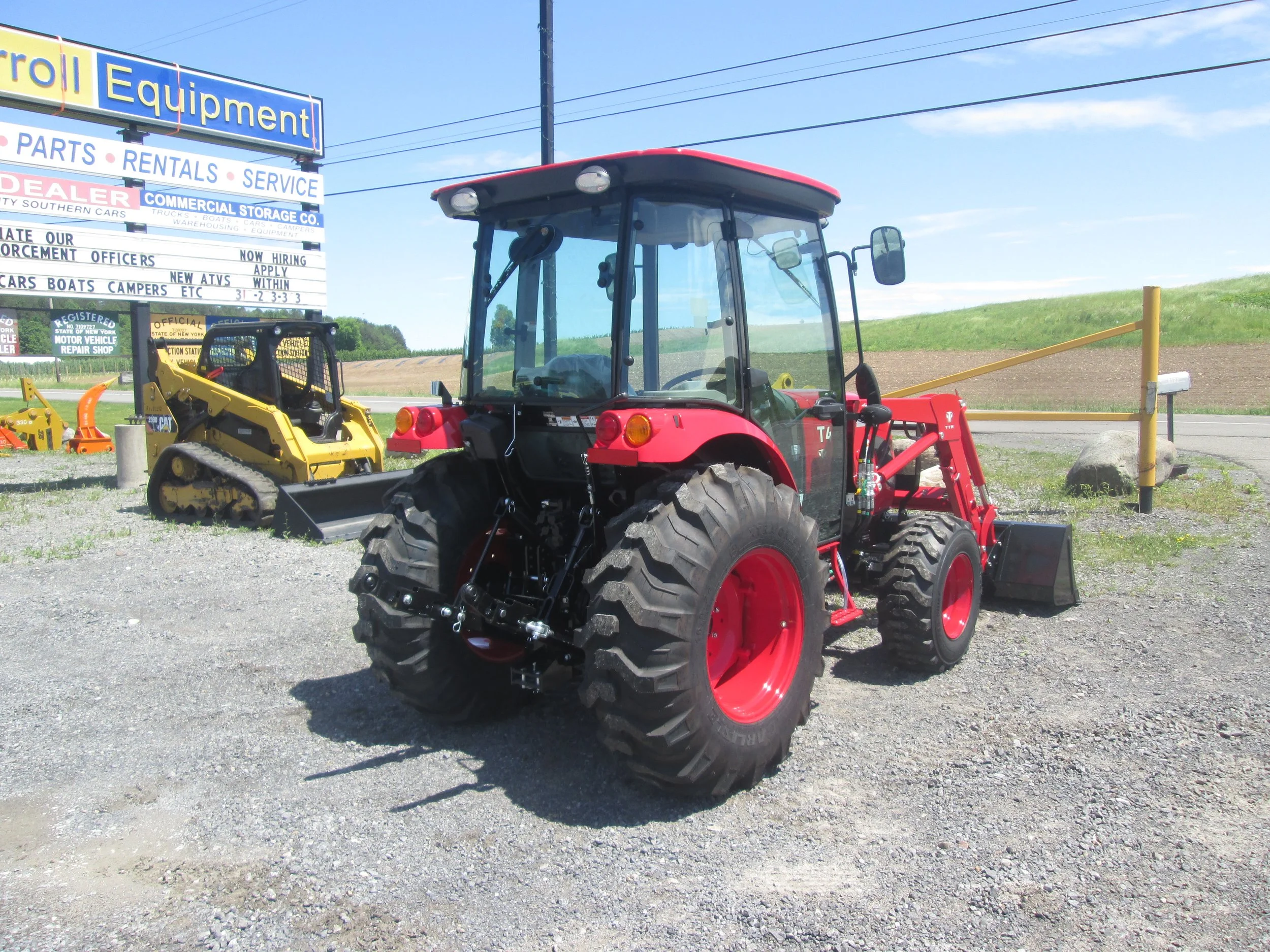

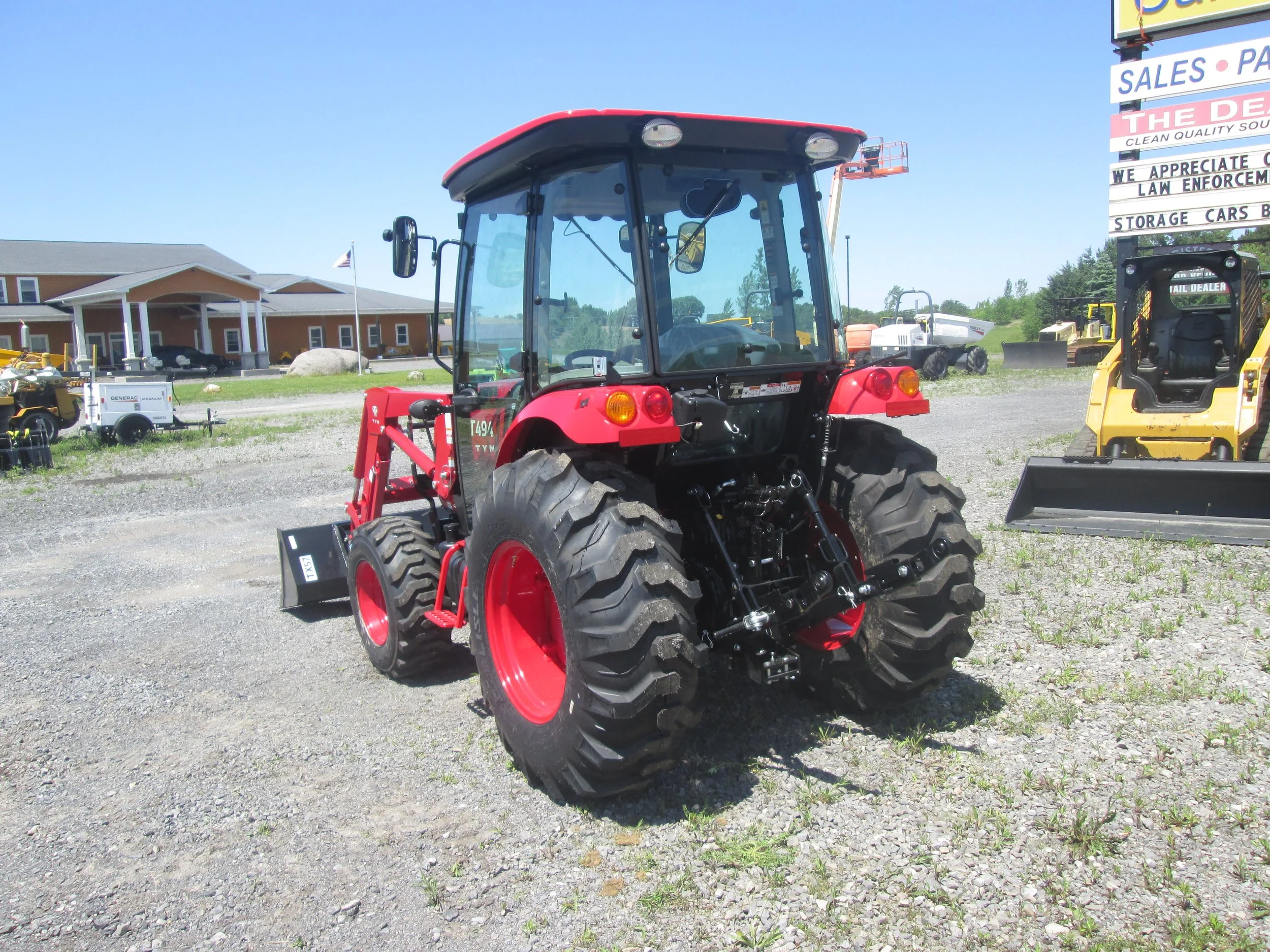

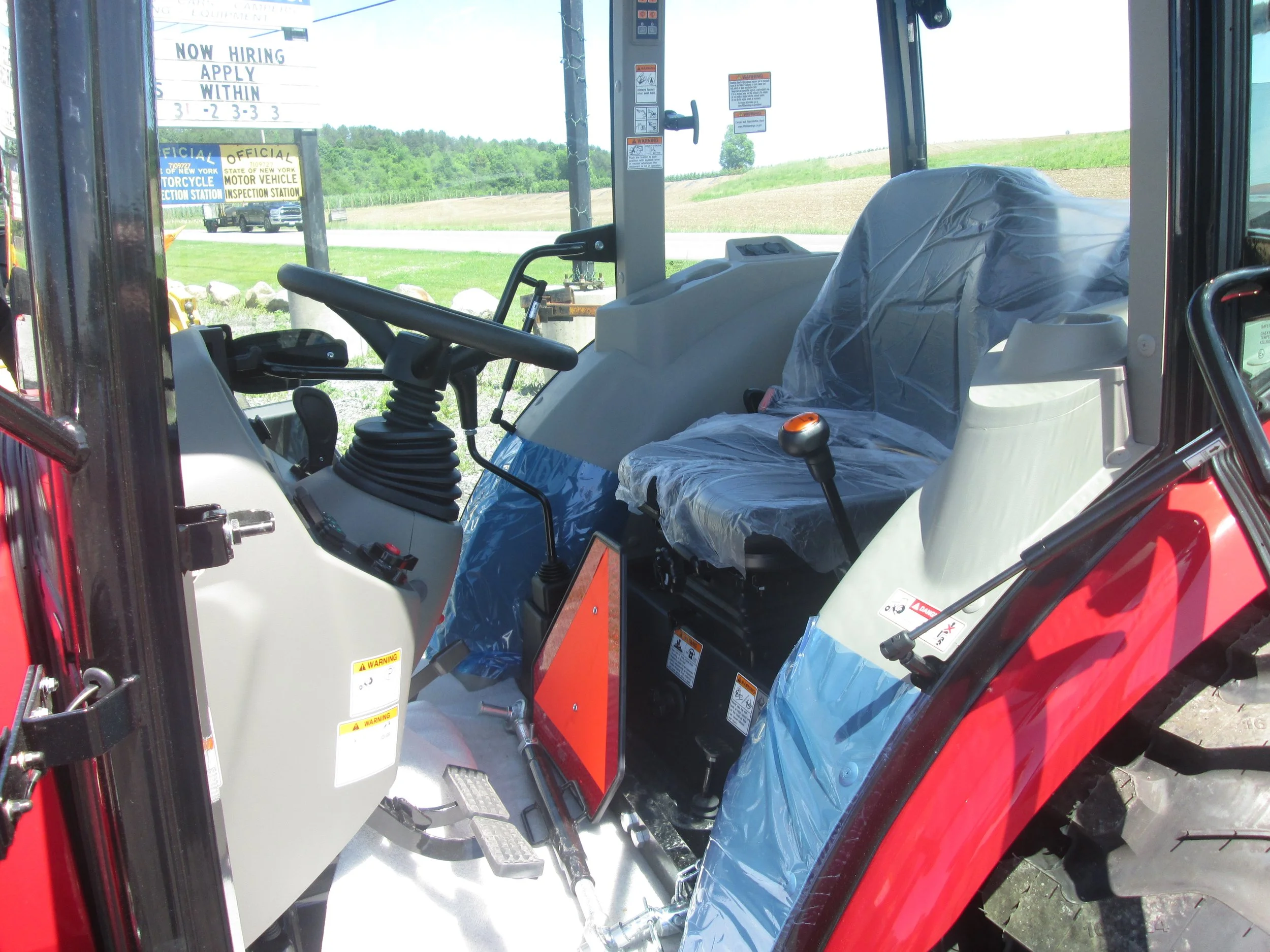

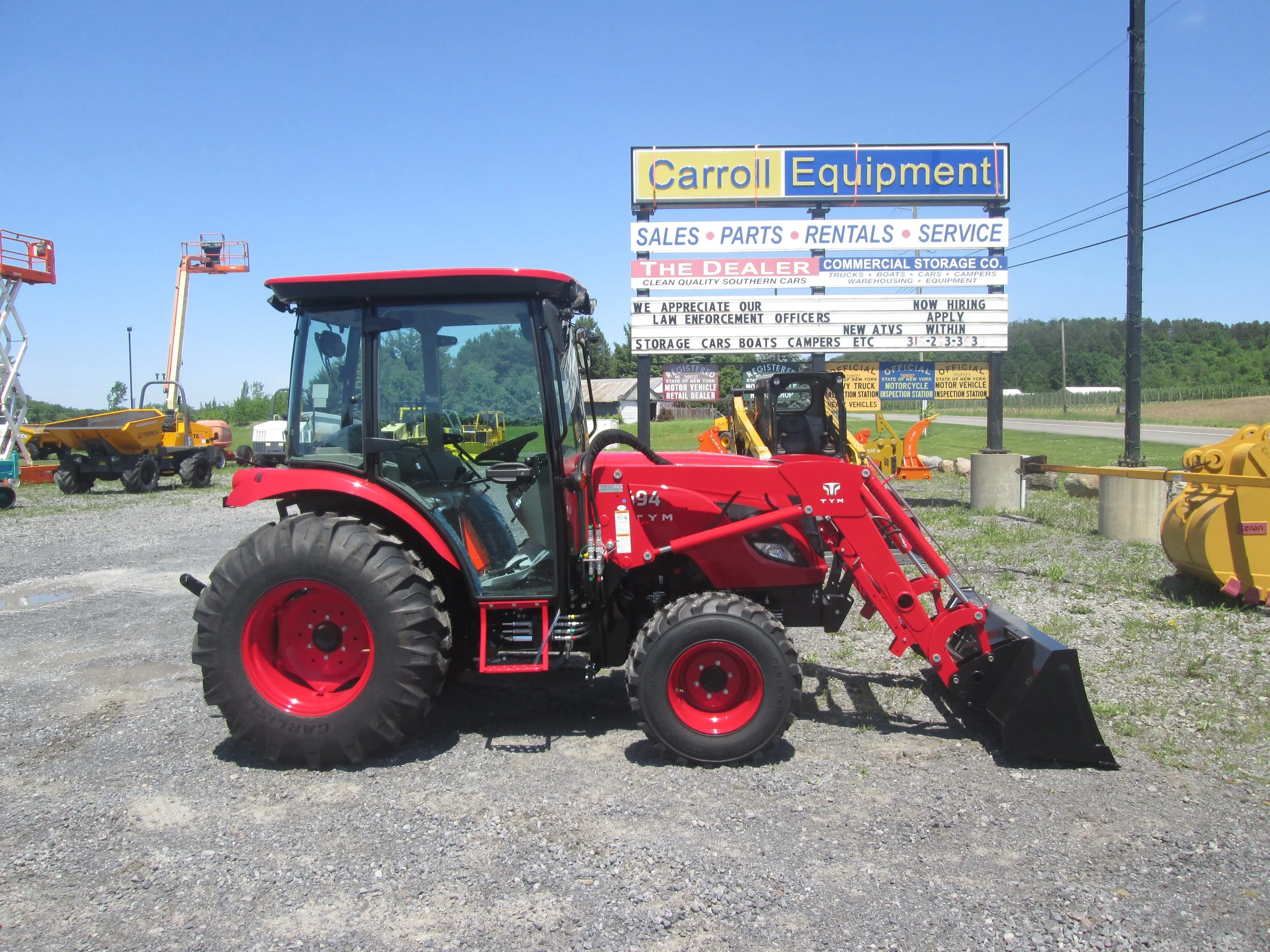

TYM 4 cylinder 48hp diesel engine, 3 speed hydrostatic transmission, 4x4, rear 3pt hitch, rear PTO, 2 rear hydraulic remote 3rd valves, 72” quick couple bucket, quick detach loader, Cab with heat and AC, Bluetooth stereo, 12v power supply, work lights, The tractor and loader both weigh approximately 5,000lbs. 6 year limited drivetrain warranty!

The TX front-end loader takes advantage of the power and durability of TYM

 compact tractors. Ideal for tasks that require more strength, the TX front-end

 loader can help you get your tasks done more efficiently.

Lift height                                                             109.4in | 2780 mm

Lift capacity at pivot point (max. height)       2790 lb |1266 kgf

Bucket capacity                                                   11.3 cu. ft | 0.32 cu. m

CAPACITIES & REACH

Lift height                                                            109.4 in. | 2780 mm

Max. lift height under level bucket                 101 in. | 2566 mm

 Clearance with bucket dumped                     83.6 in. | 2123 mm

 Reach at maximum lift height                        17.6 in. | 447 mm

Max. dump angle                                              50°

Reach with bucket on ground                         71.5 in. | 1815 mm

Max. rollback angle                                          35°

Digging depth                                                     5.5 in. | 140 mm

Lift capacity at pivot point (max. height)      2790 lb | 1266 kgf

Breakout force at ground level, pivot pins    5316 lb | 2411 kgf

Bucket rollback force at ground line               4356 lb | 1976 kgf

Bucket capacity                                                   11.3 cu. ft | 0.32 cu. M

Self leveling                                                           NA

Relief valve setting (loader control valve)      2489 psi | 175 kg/sq. cm

Compatible bucket sizes                                   66" Front-end loader bucket

DIMENSIONS & WEIGHTS

Overall height in carry position                                       56.8 in. | 1442 mm

Depth of Attachment (to the back of the inner shell) 21.1 in. | 537 mm

Height of Attachment                                                        20.4 in. | 519 mm

Length of Attachment (to pivot pin)                               27.3 in. | 694 mm

Weight of boom & quick attach mechanism (1)          535.7 lb | 243 kg

Weight of mounting frame (2)                                        313 lb | 142 kg

Weight of bucket (3)                                                         271.2 lb | 123 kg

Loader total weight (1+2+3)                                               1120 lb | 508 kg

Lift cylinder                                                                  2.4 × 1.4 in. | 60 × 35 mm

Bucket cylinder                                                         2.4 × 1.4 in. | 60 × 35 mm

Attachment used for specification                                     72 in. | 1830 mm

CYCLE TIMES

Boom raising time          6.4 sec

Boom lowering time      4.2 sec

Bucket rollback time      3.8 sec

Bucket dumping time    5.7 sec

TYM’s multi-purpose buckets are capable of bulldozing, scraping, loading,

metering, moving and clamping material.

72” Front-End Loader bucket
