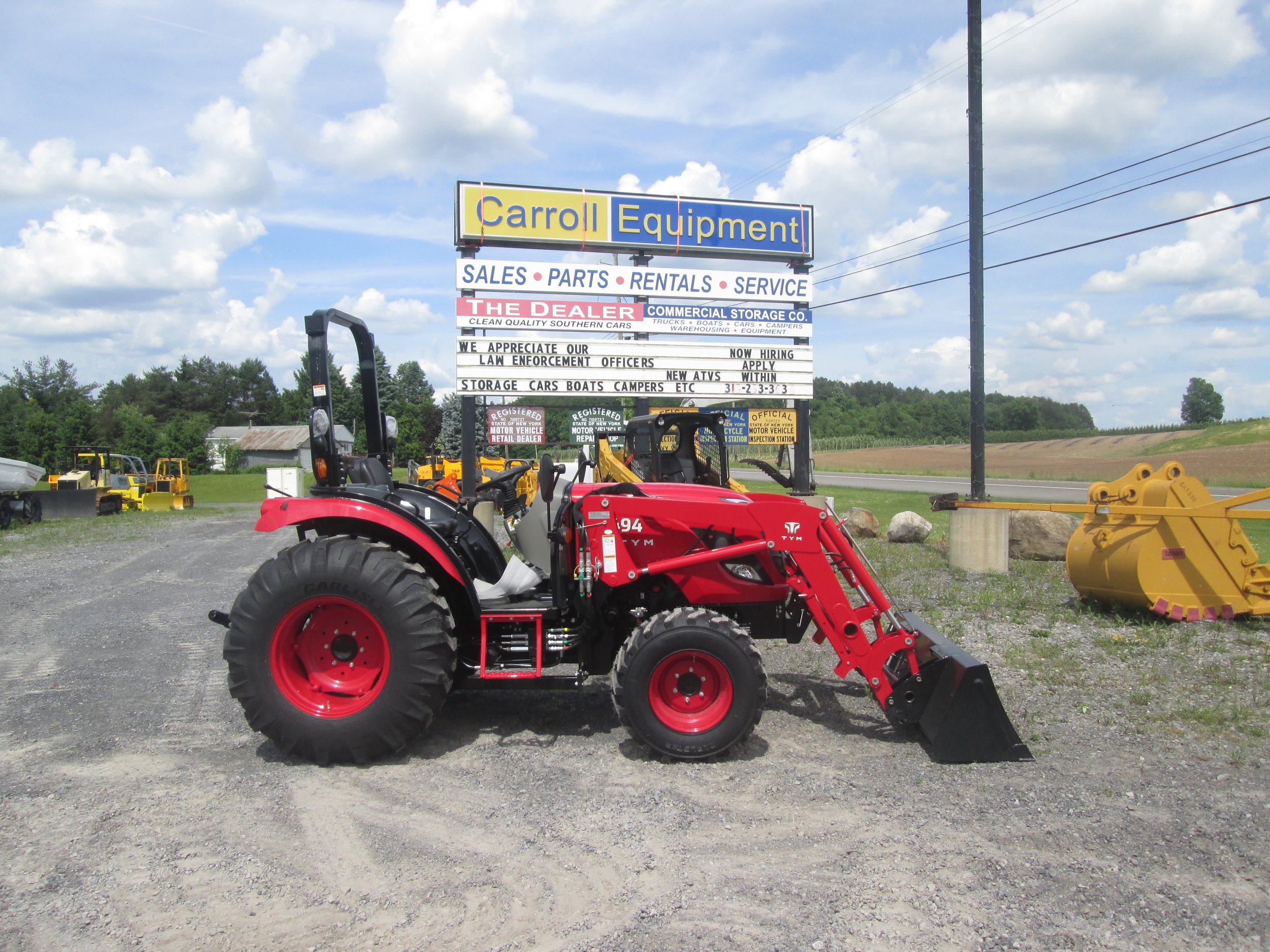

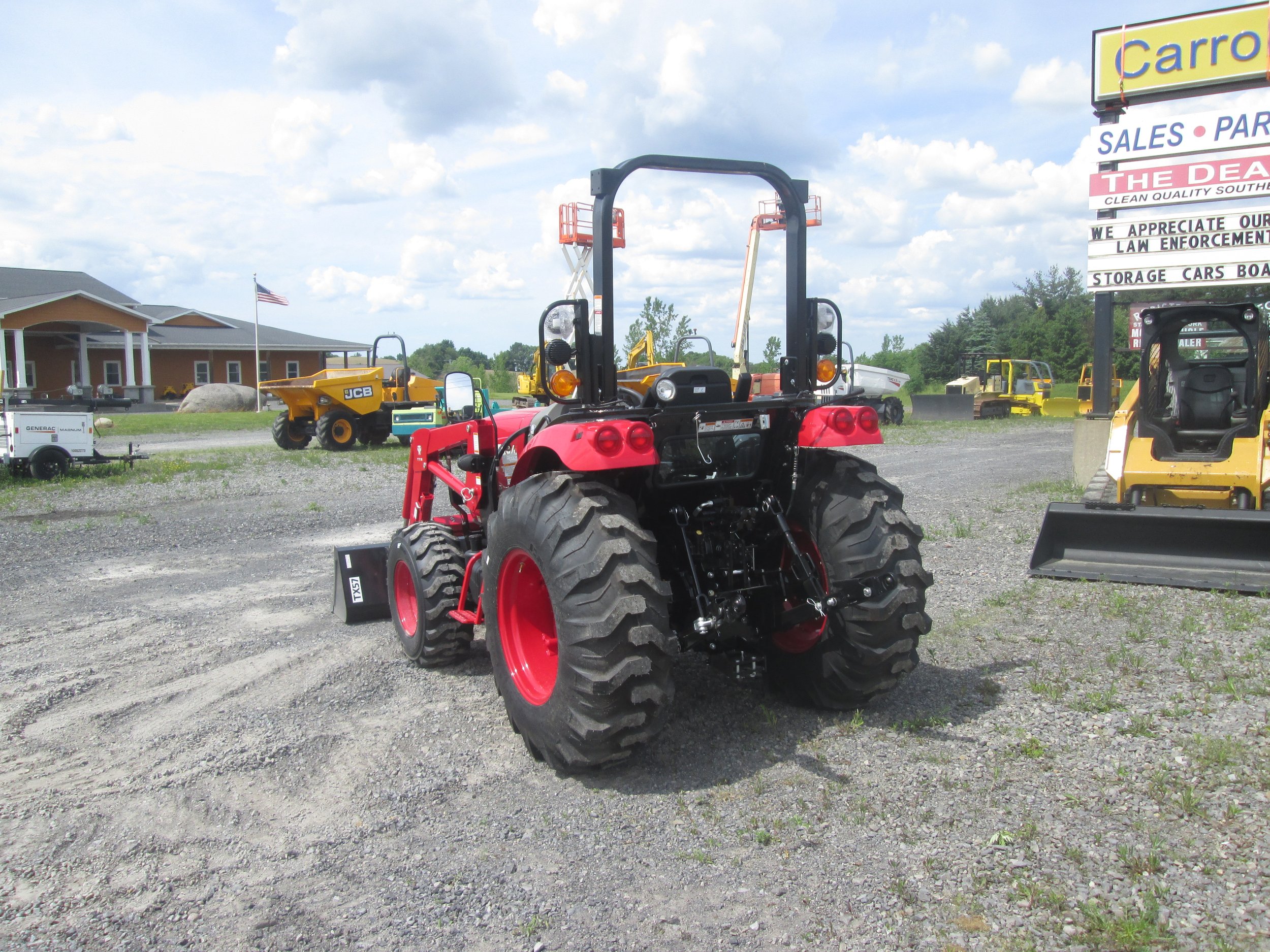

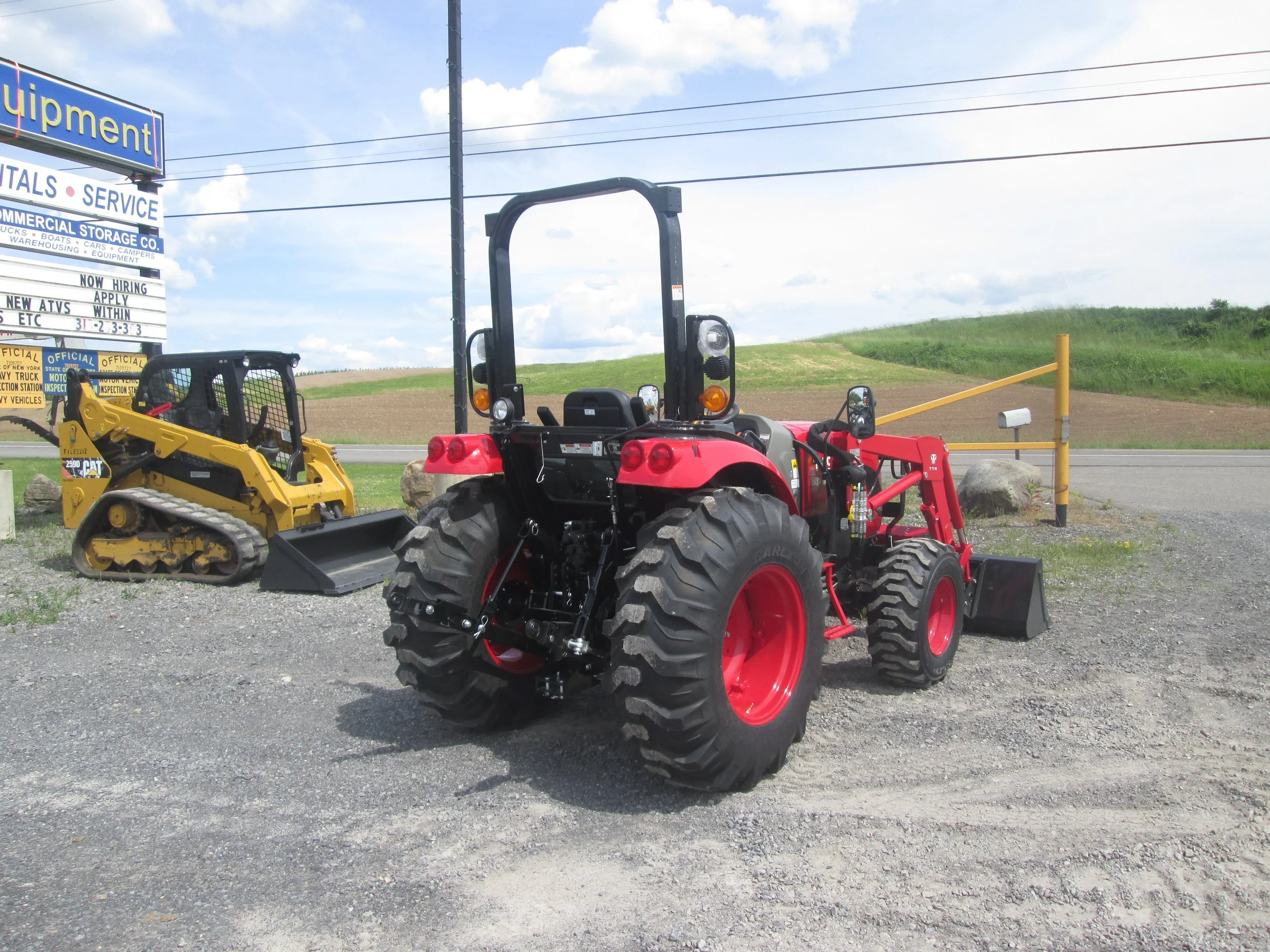

NEW TYM T494H Tractor, Loader SN-0107

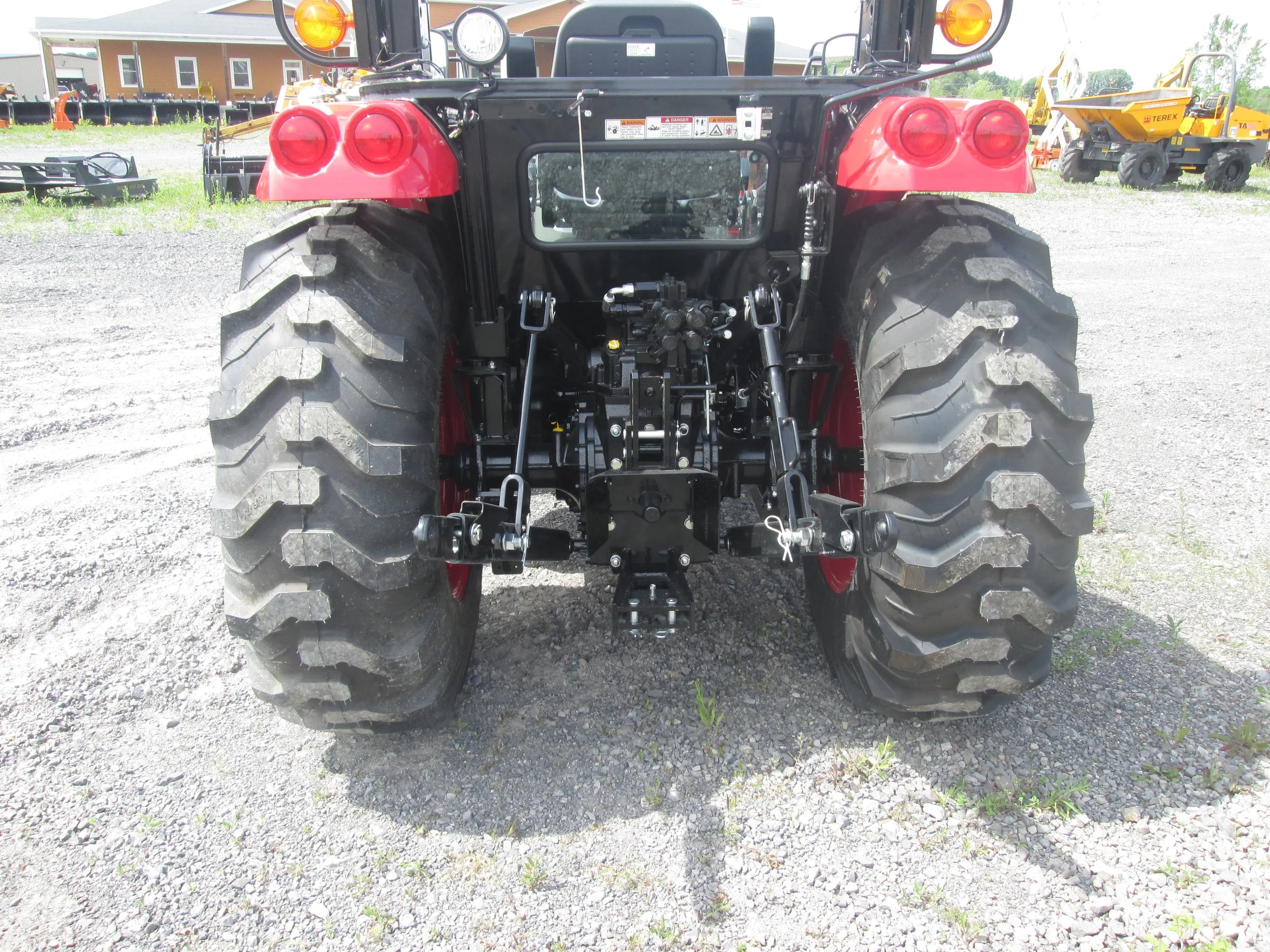

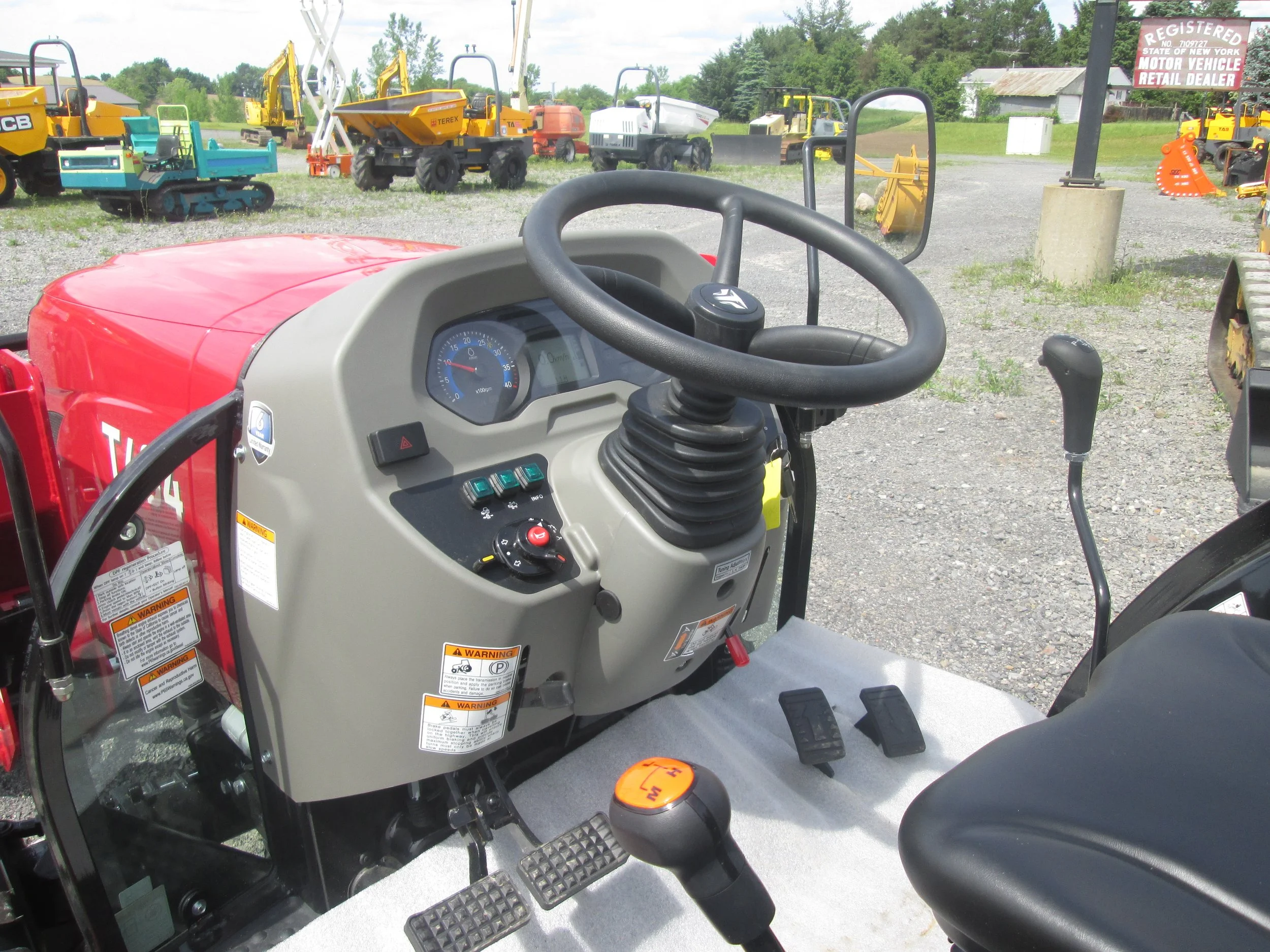

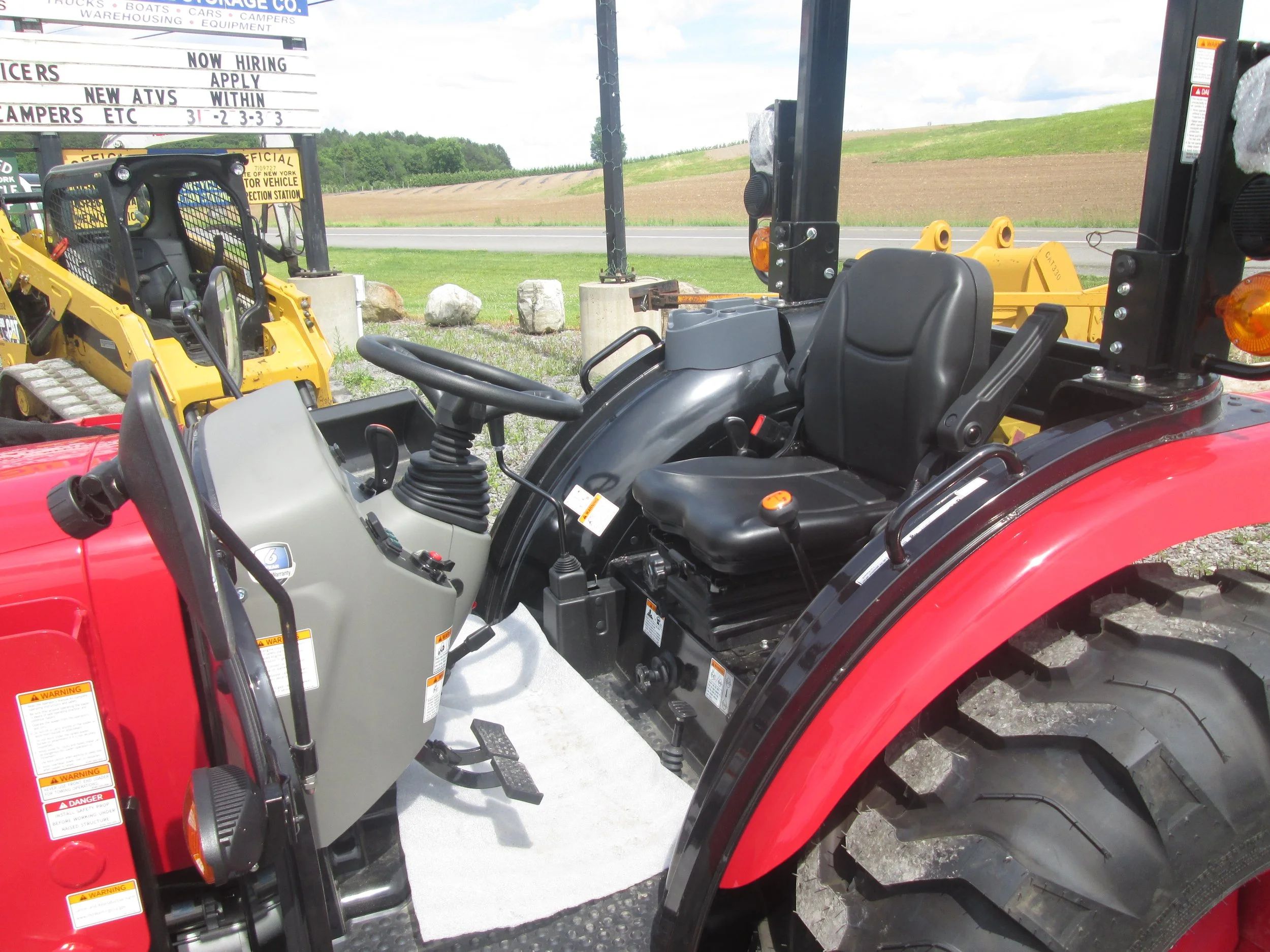

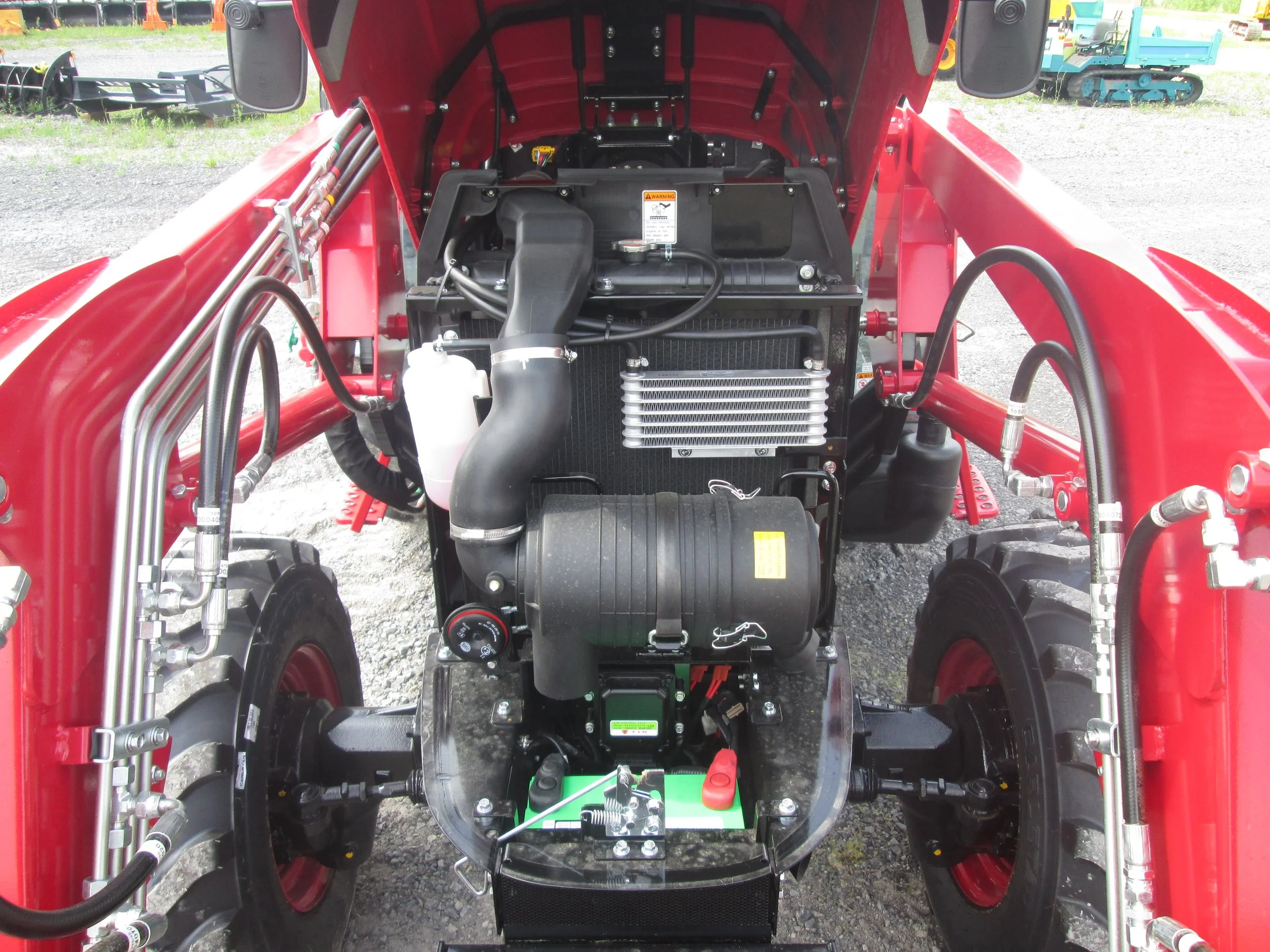

TYM 4 cylinder, diesel engine, 3 speed hydrostatic transmission, rear 3pt hitch, rear PTO, Fold down ROPS, 2 rear remote valves, 72” quick couple bucket, Bluetooth speakers, work lights, Front 305/70-16.5 tires, Rear 16.9-24 tires. The tractor and loader both weigh approximately 5,000lbs. 6 year limited drivetrain warranty!

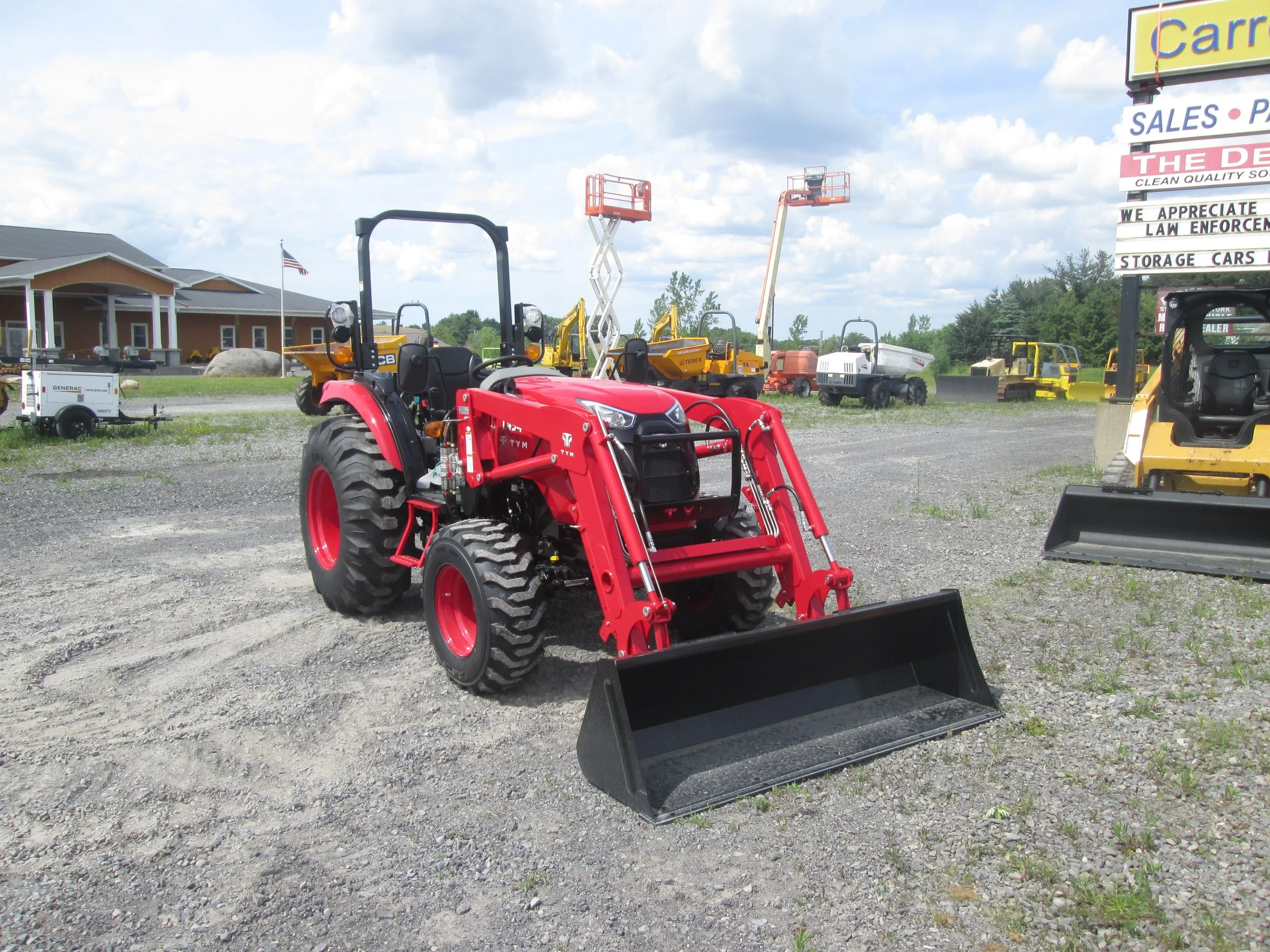

The TX front-end loader takes advantage of the power and durability of TYM

compact tractors. Ideal for tasks that require more strength, the TX front-end

loader can help you get your tasks done more efficiently.

Lift height

109.4in | 2780 mm

Lift capacity at pivot point (max. height)

2790 lb |1266 kgf

Bucket capacity

11.3 cu. ft | 0.32 cu. m

CAPACITIES & REACH

Lift height

109.4 in. | 2780 mm

Max. lift height under level bucket

101 in. | 2566 mm

Clearance with bucket dumped

83.6 in. | 2123 mm

Reach at maximum lift height

17.6 in. | 447 mm

Max. dump angle

50°

Reach with bucket on ground

71.5 in. | 1815 mm

Max. rollback angle

35°

Digging depth

5.5 in. | 140 mm

Lift capacity at pivot point (max. height)

2790 lb | 1266 kgf

Breakout force at ground level, pivot pins

5316 lb | 2411 kgf

Bucket rollback force at ground line

4356 lb | 1976 kgf

Bucket capacity

11.3 cu. ft | 0.32 cu. M

Self leveling

NA

Relief valve setting (loader control valve)

2489 psi | 175 kg/sq. cm

Compatible bucket sizes

66" Front-end loader bucket

DIMENSIONS & WEIGHTS

Overall height in carry position

56.8 in. | 1442 mm

Depth of Attachment (to the back of the inner shell)

21.1 in. | 537 mm

Height of Attachment

20.4 in. | 519 mm

Length of Attachment (to pivot pin)

27.3 in. | 694 mm

Weight of boom & quick attach mechanism (1)

535.7 lb | 243 kg

Weight of mounting frame (2)

313 lb | 142 kg

Weight of bucket (3)

271.2 lb | 123 kg

Loader total weight (1+2+3)

1120 lb | 508 kg

Lift cylinder

2.4 × 1.4 in. | 60 × 35 mm

Bucket cylinder

2.4 × 1.4 in. | 60 × 35 mm

Attachment used for specification

72 in. | 1830 mm

CYCLE TIMES

Boom raising time6.4 sec

Boom lowering time4.2 sec

Bucket rollback time3.8 sec

Bucket dumping time5.7 sec

TYM’s multi-purpose buckets are capable of bulldozing, scraping, loading,

metering, moving and clamping material.

72” Front-End Loader bucket
