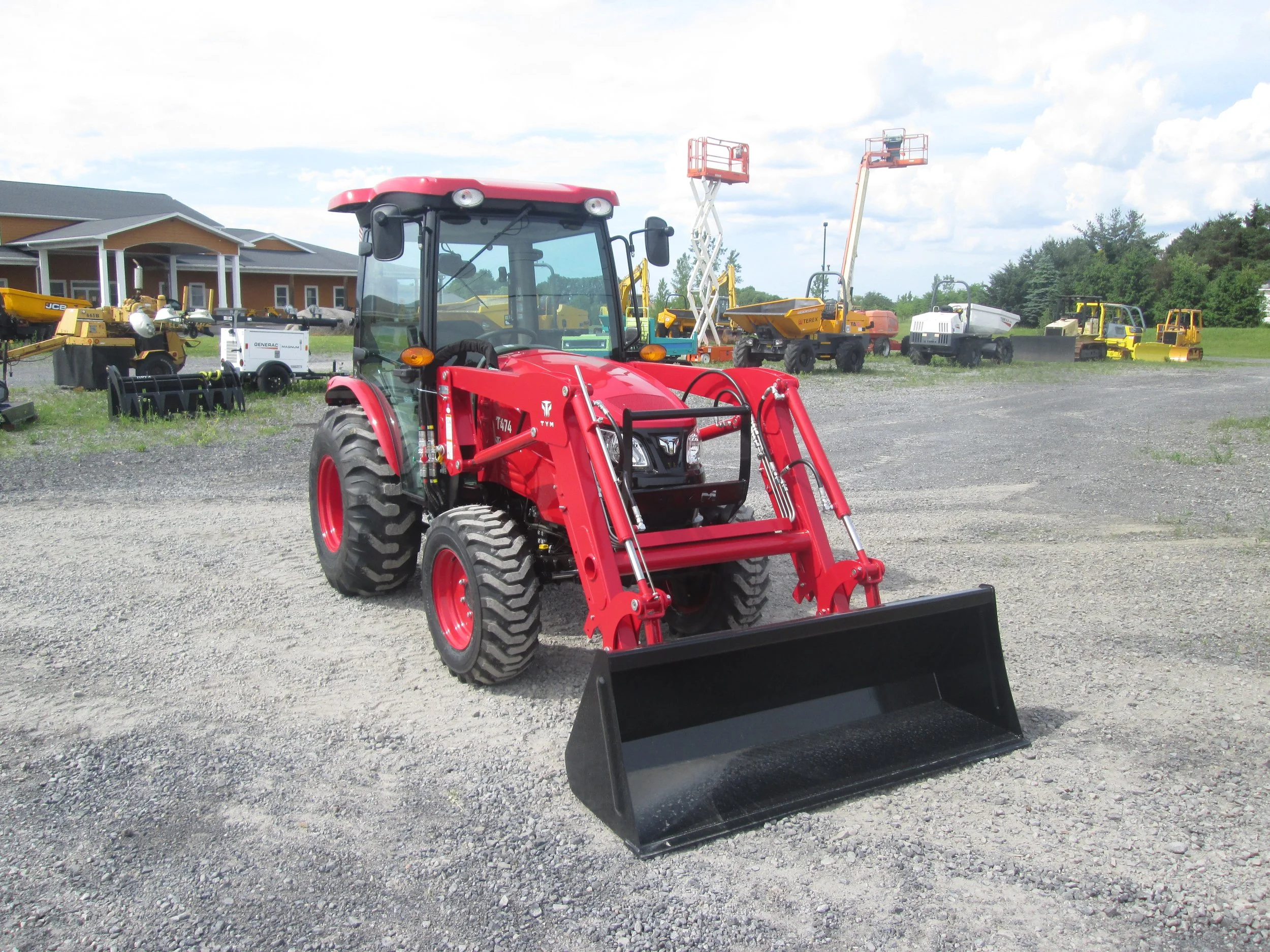

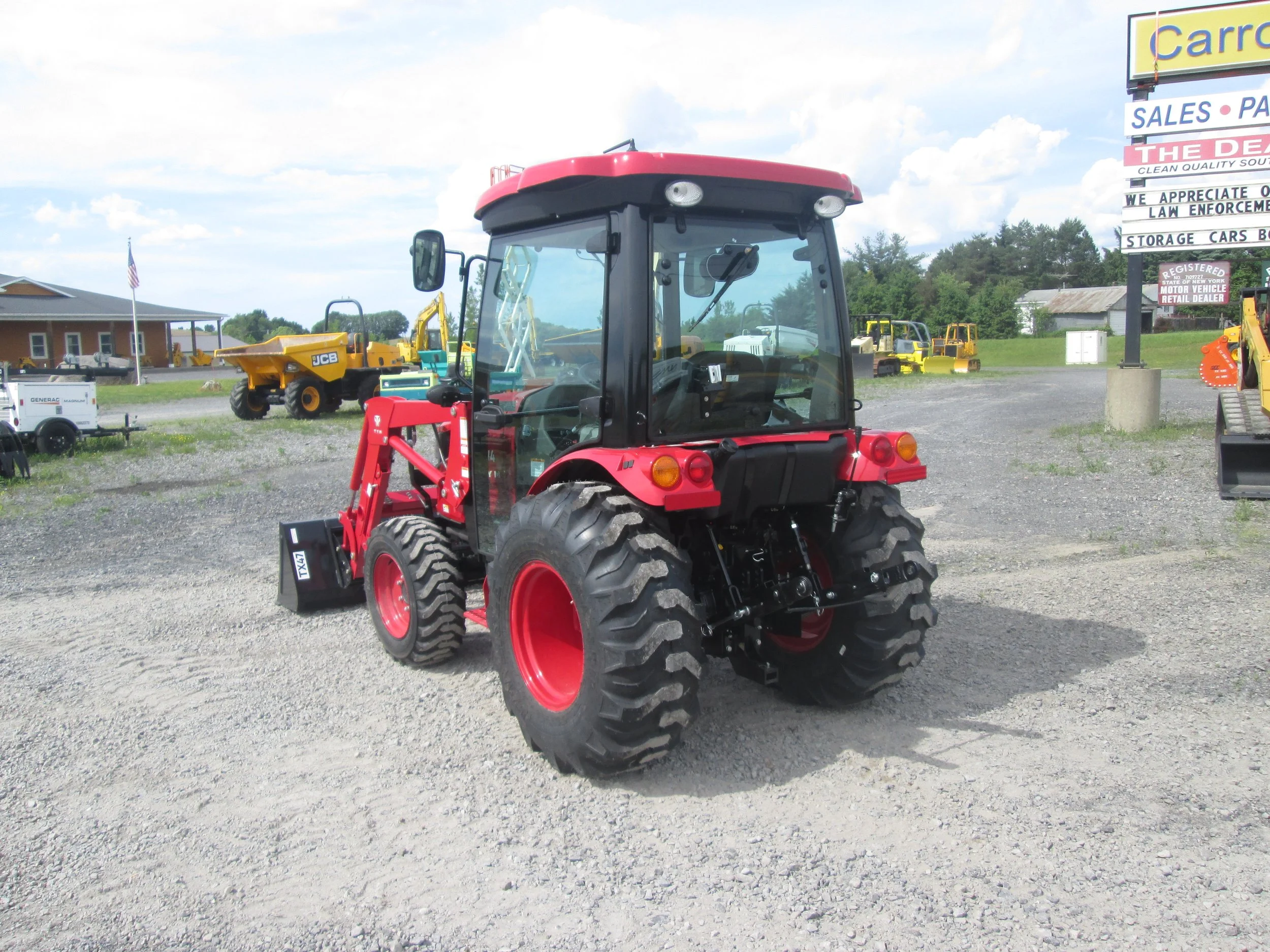

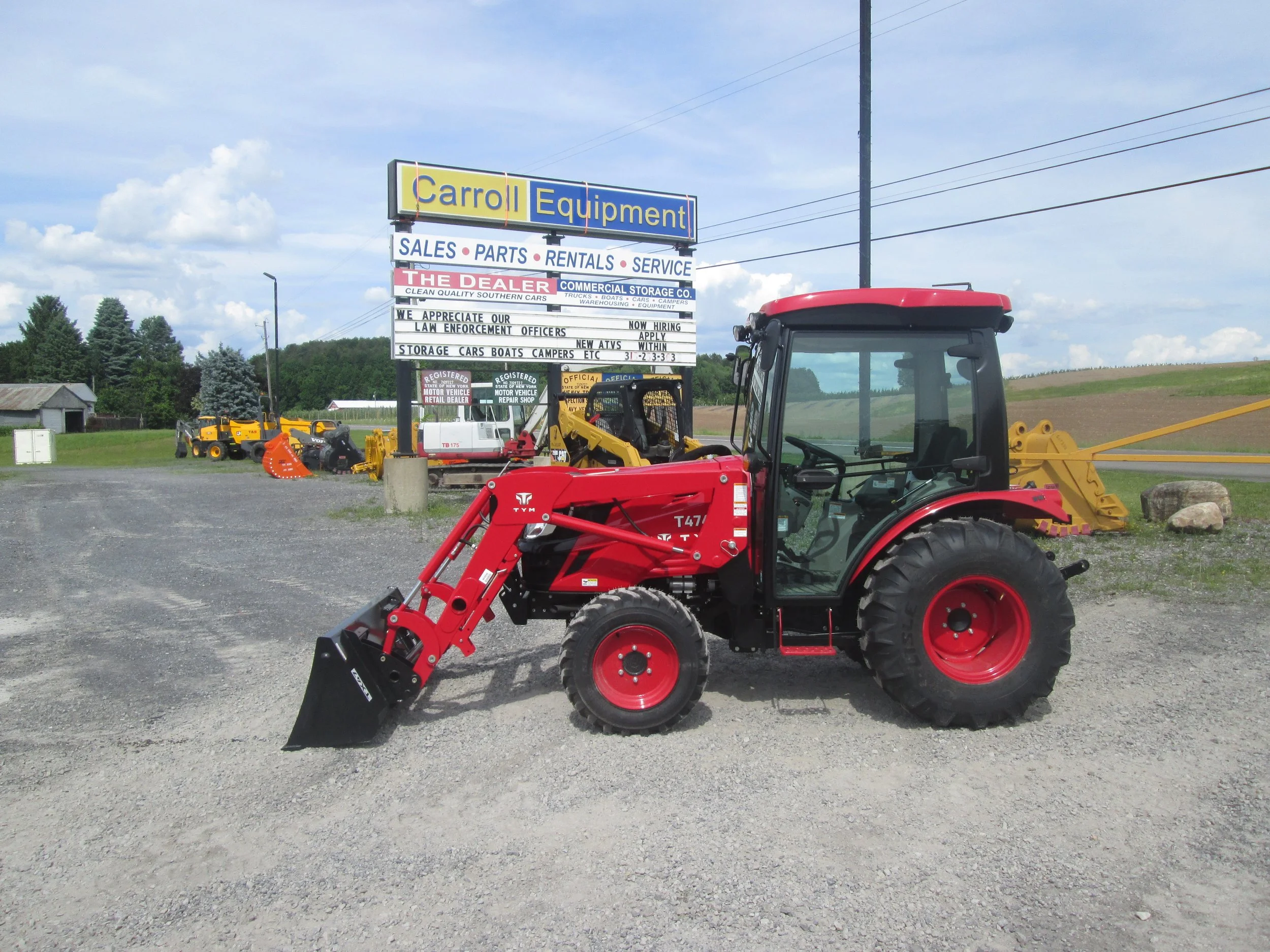

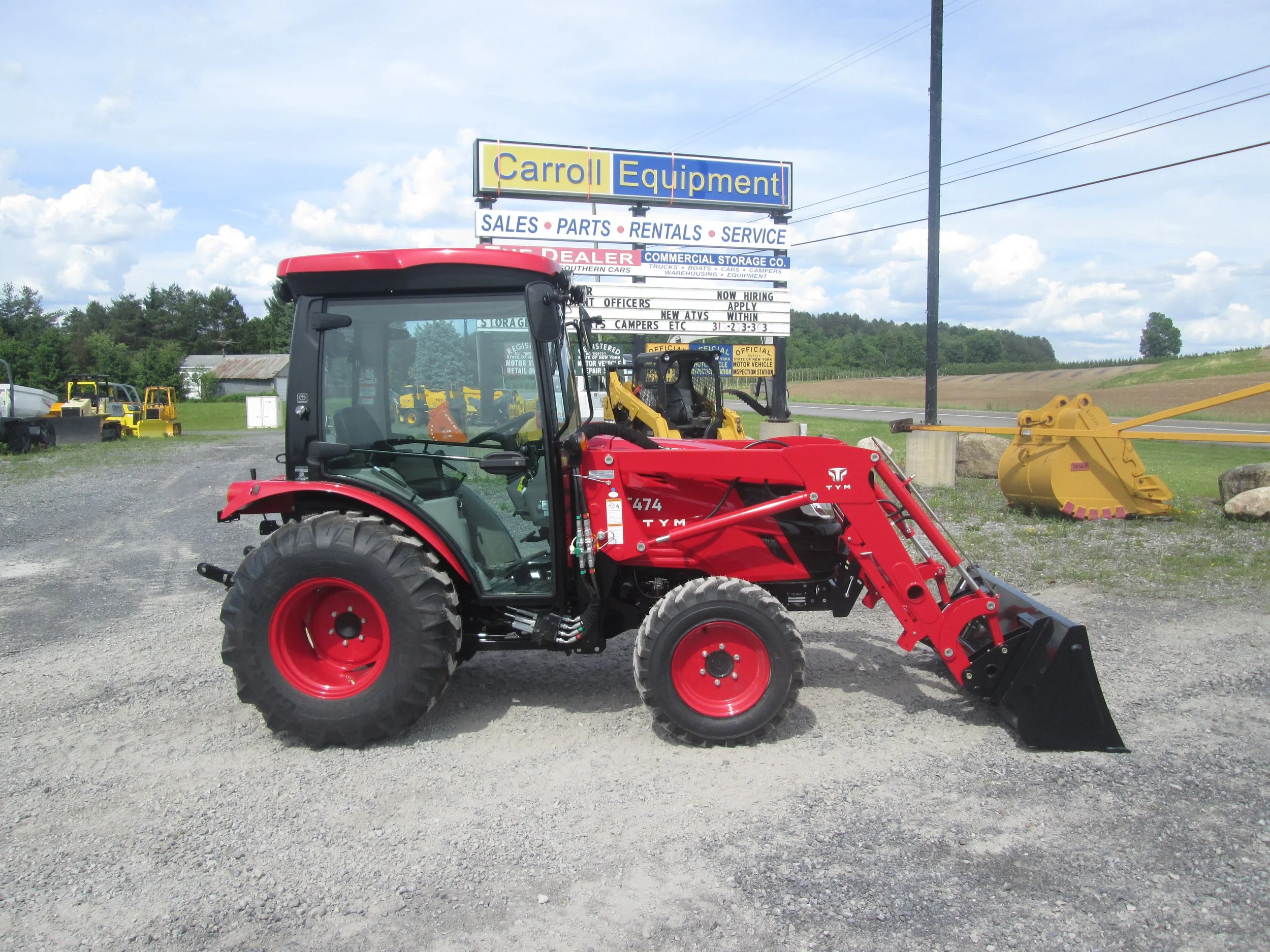

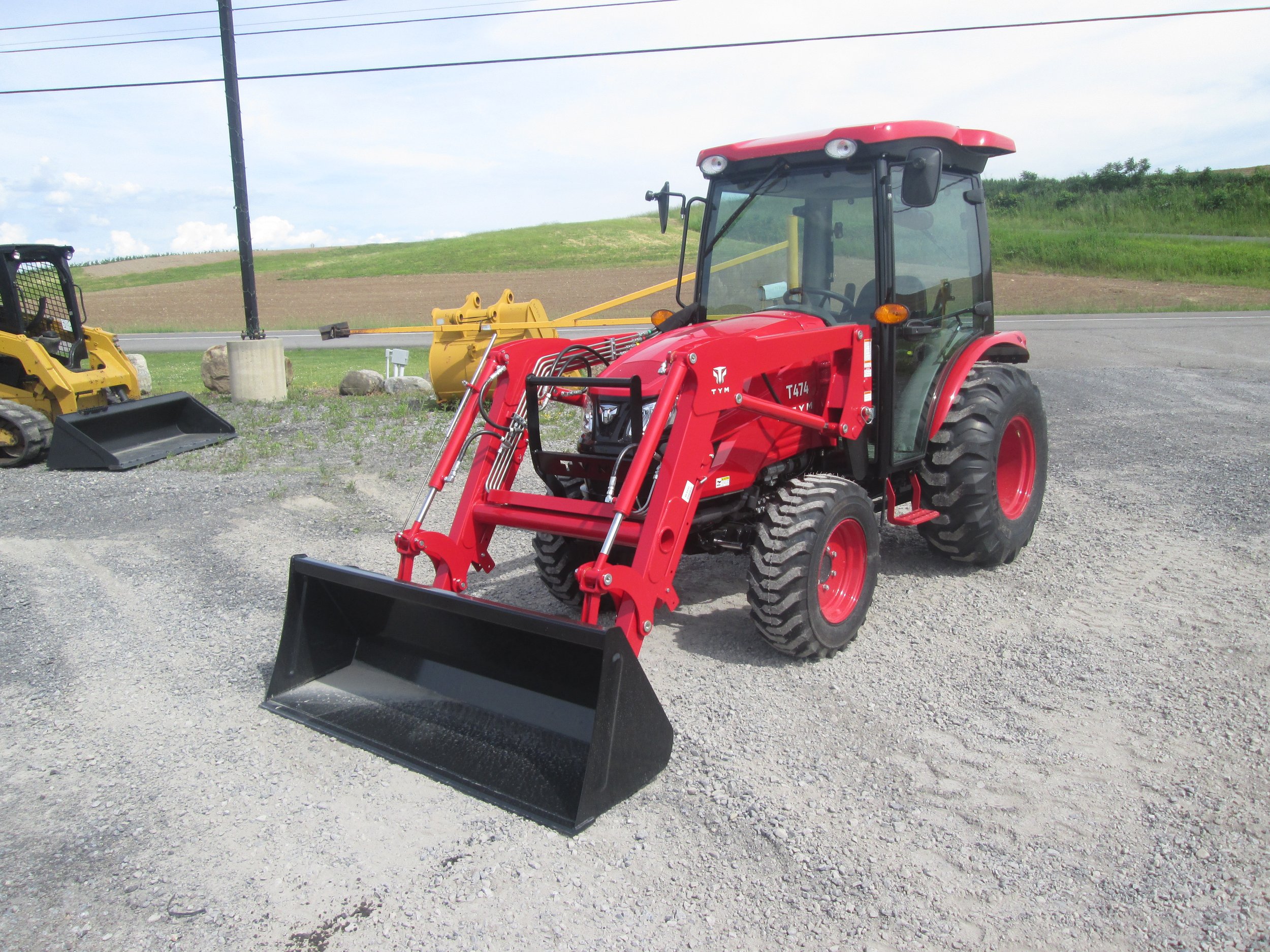

New TYM T474H Tractor Loader Cab SN-0815

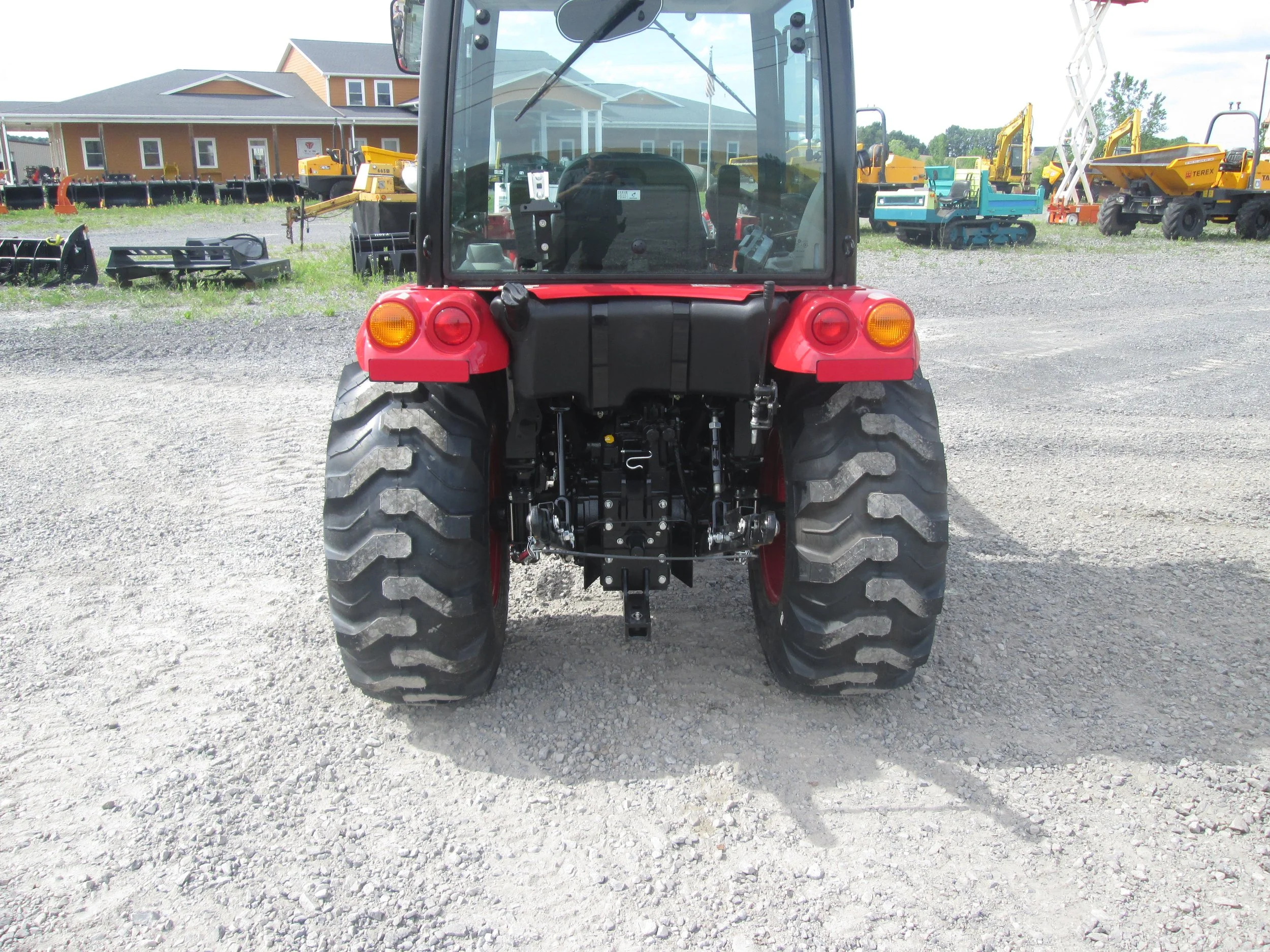

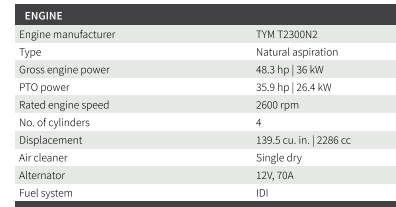

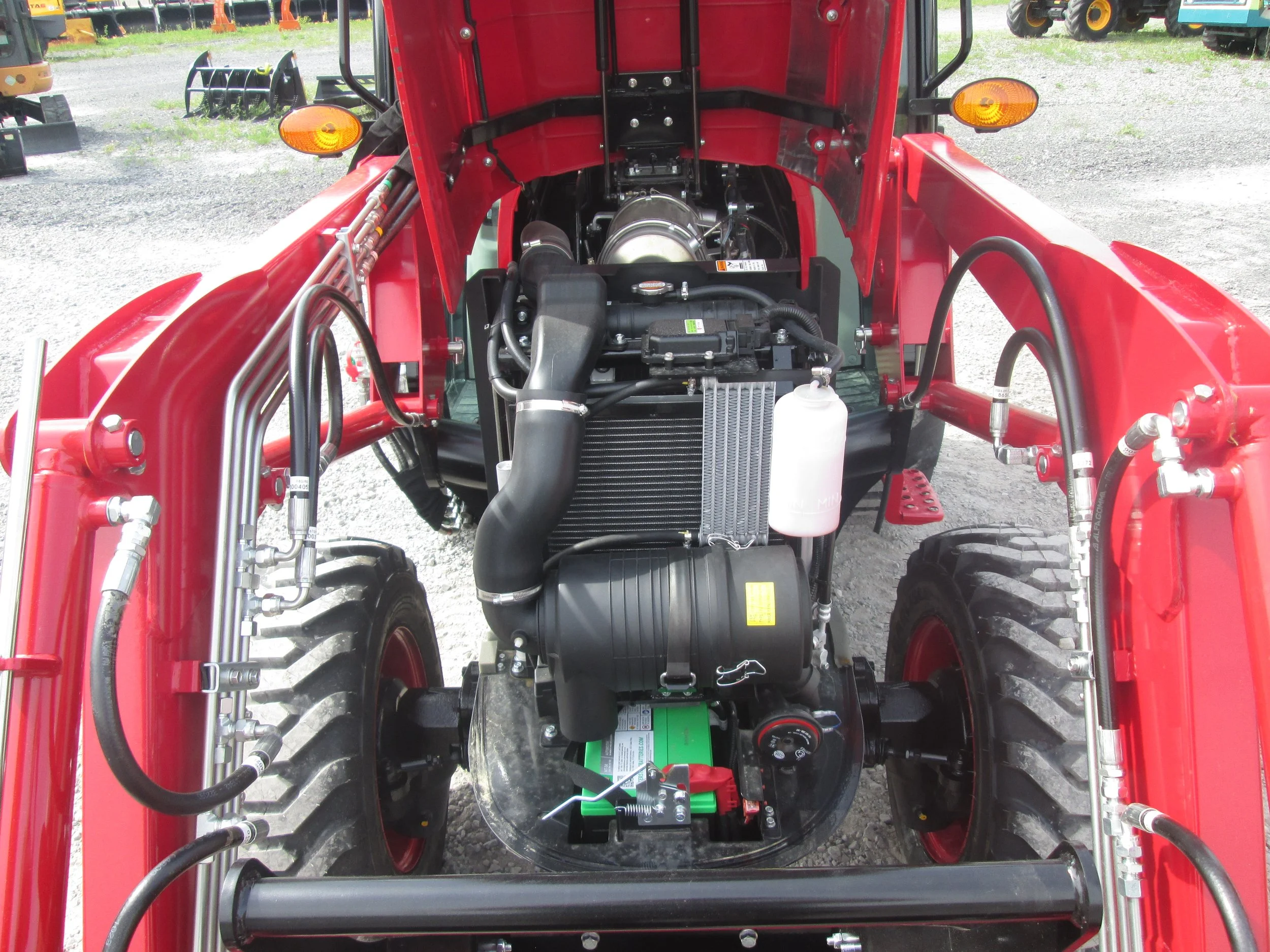

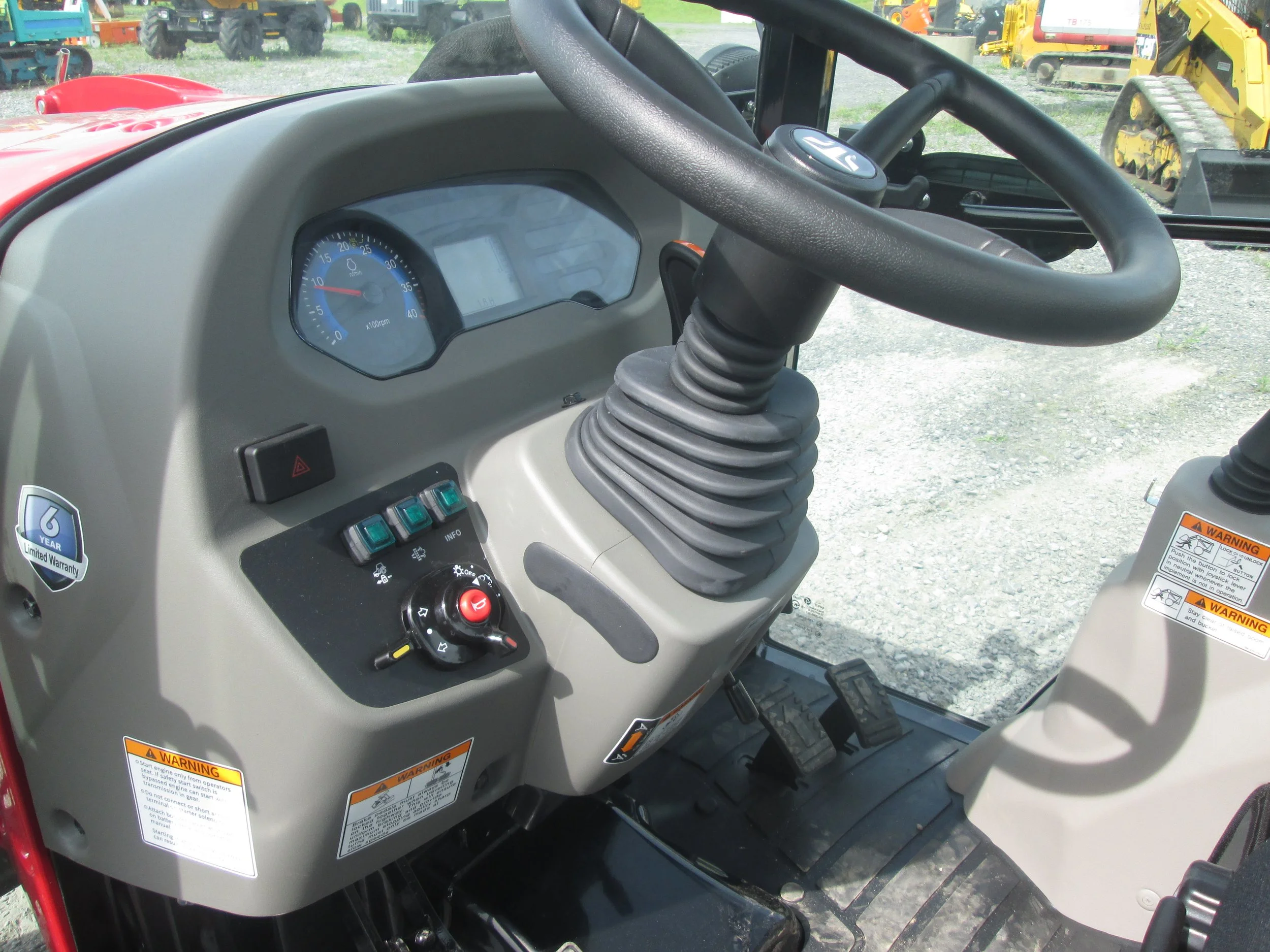

4×4, 4 cylinder, 48hp TYM diesel engine, Cab with Heat and AC, rear PTO, rear 3pt hitch, 66” quick couple bucket, 235/70-16.5 front tires, 410/70-20 rear tires,rear remote valve, 6 year limited warranty!

Lift height

105.6 in. | 2683 mm

Lift capacity at pivot point (max. height)

2152 lb | 976.2 kgf

Bucket capacity

9.9 cu. ft | 0.28 cu. m

CAPACITIES & REACH

Lift height

105.6 in. | 2683 mm

Max. lift height under level bucket

96.5 in. | 2450 mm

Clearance with bucket dumped

80.4 in. | 2042 mm

Reach at maximum lift height

15 in. | 380 mm

Max. dump angle

52°

Reach with bucket on ground

70.7 in. | 1795 mm

Max. rollback angle

35°

Digging depth

10 in. | 255 mm

Lift capacity at pivot point (max. height)

2152 lb | 976.2 kgf

Breakout force at ground level, pivot pins

3198 lb | 1450 kgf

Bucket rollback force at ground line

3012 lb | 1366 kgf

Bucket capacity

9.9 cu. ft | 0.28 cu. m

Relief valve setting (loader control valve)

2347 psi | 165 kg/sq. cm

Compatible bucket sizes

66" Front-end loader bucket

DIMENSIONS & WEIGHTS

Overall height in carry position

50.9 in. | 1293 mm

Depth of Attachment (to the back of the inner shell)

20.9 in. | 530 mm

Height of Attachment

20.9 in. | 530 mm

Length of Attachment (to pivot pin)

28.2 in. | 716 mm

Weight of boom & quick attach mechanism (1)

521 lb | 236 kg

Weight of mounting frame (2)

284 lb | 129 kg

Weight of bucket (3)

269 lb | 122 kg

Loader total weight (1+2+3)

1075 lb | 487 kg

Lift cylinder

2.2 × 1.2 in. | 55 × 30 mm

Bucket cylinder

2.0 × 1.2 in. | 55 × 30 mm

Attachment used for specification

72 in. | 1830 mm

CYCLE TIMES

Boom raising time4.3 sec

Boom lowering time2.8 sec

Bucket rollback time2.9 sec

Bucket dumping time4.2 sec
