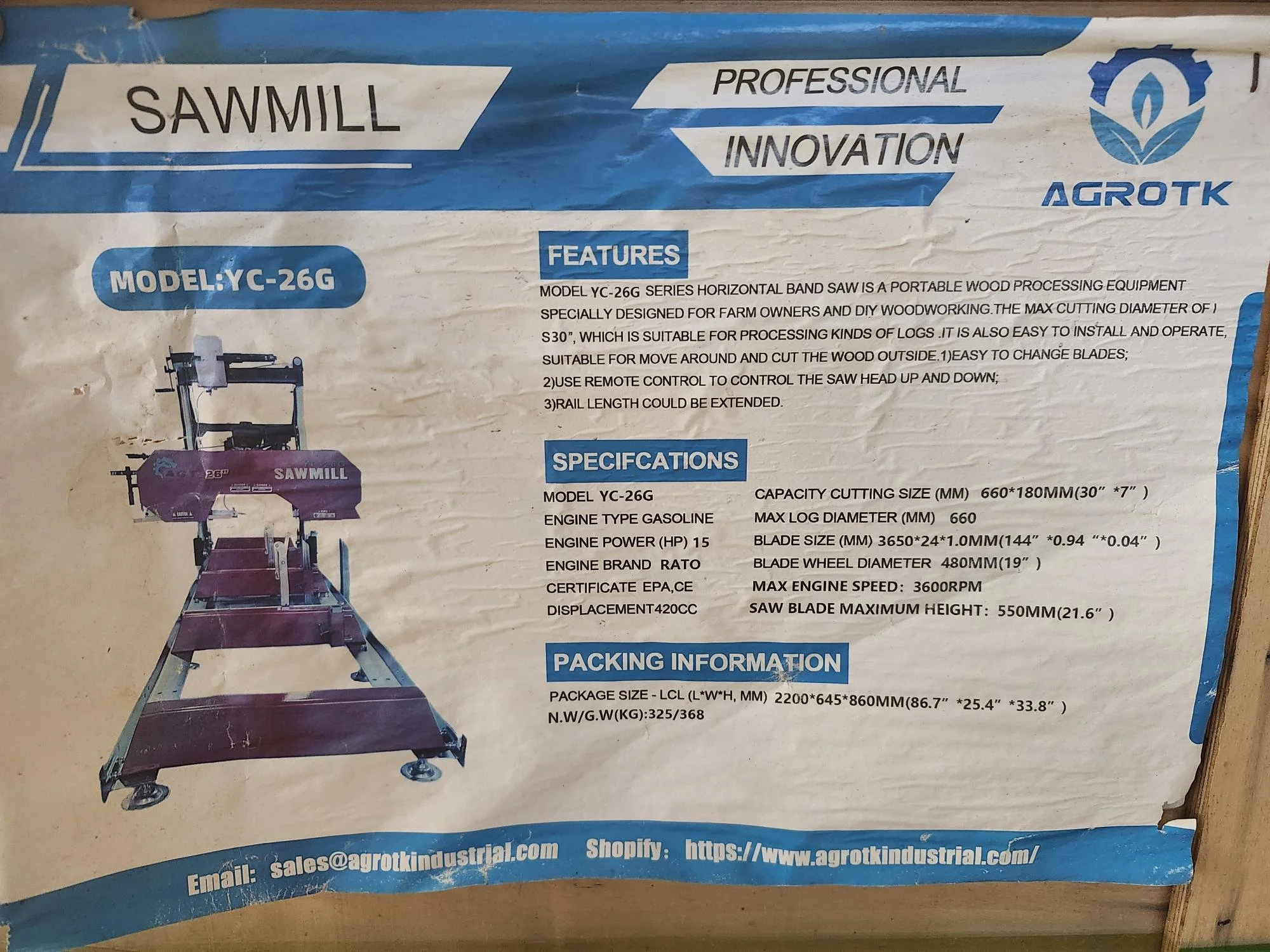

SAWMILL

PROFESSIONAL INNOVATION

AGROTK

MODEL: YC-26G

FEATURES

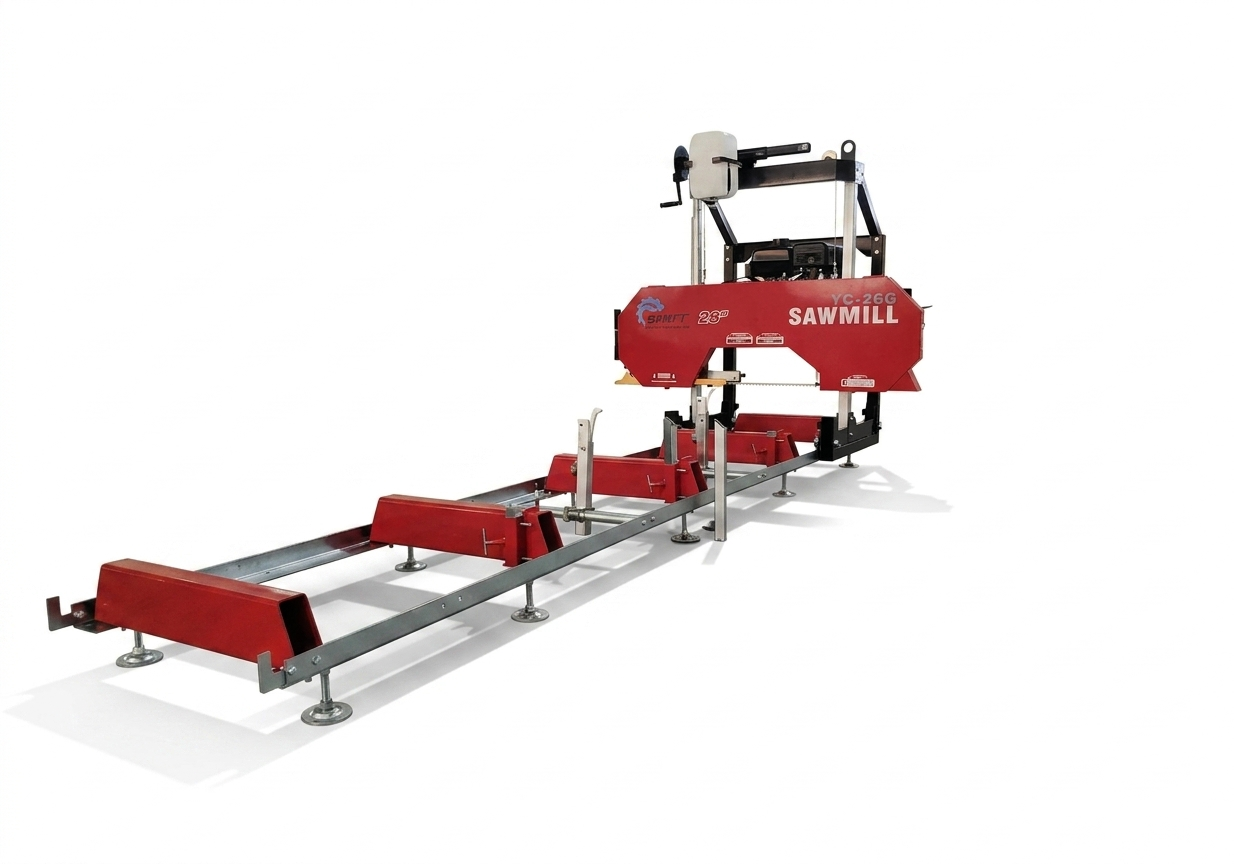

MODEL YC-26G SERIES HORIZONTAL BAND SAW IS A PORTABLE WOOD PROCESSING EQUIPMENT SPECIALLY DESIGNED FOR FARM OWNERS AND DIY WOODWORKING. THE MAX CUTTING DIAMETER OF IS 30", WHICH IS SUITABLE FOR PROCESSING VARIOUS KINDS OF LOGS. IT IS ALSO EASY TO INSTALL AND OPERATE, SUITABLE TO MOVE AROUND AND CUT THE WOOD OUTSIDE.

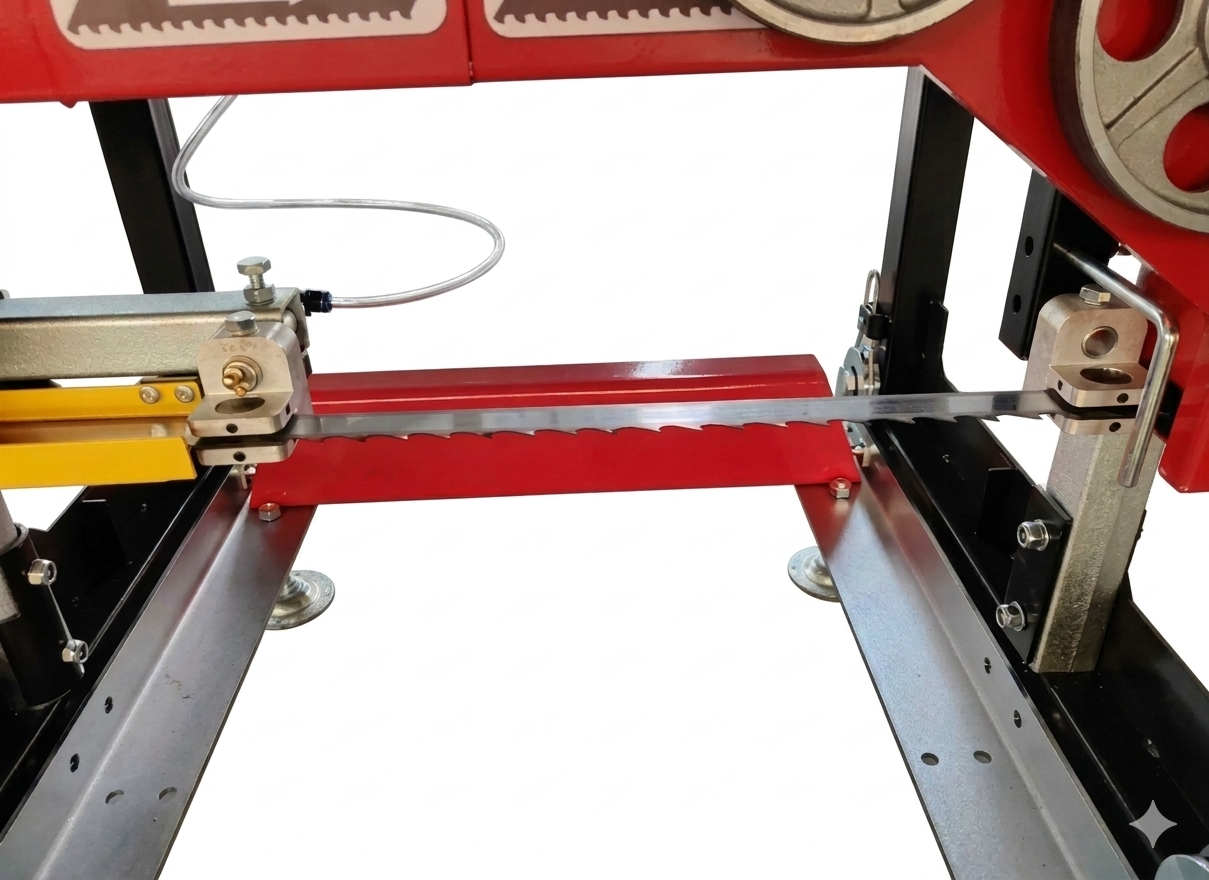

1. EASY TO CHANGE BLADES;

2. USE REMOTE CONTROL TO CONTROL THE SAW HEAD UP AND DOWN;

3. RAIL LENGTH COULD BE EXTENDED.

SPECIFICATIONS

• MODEL YC-26G

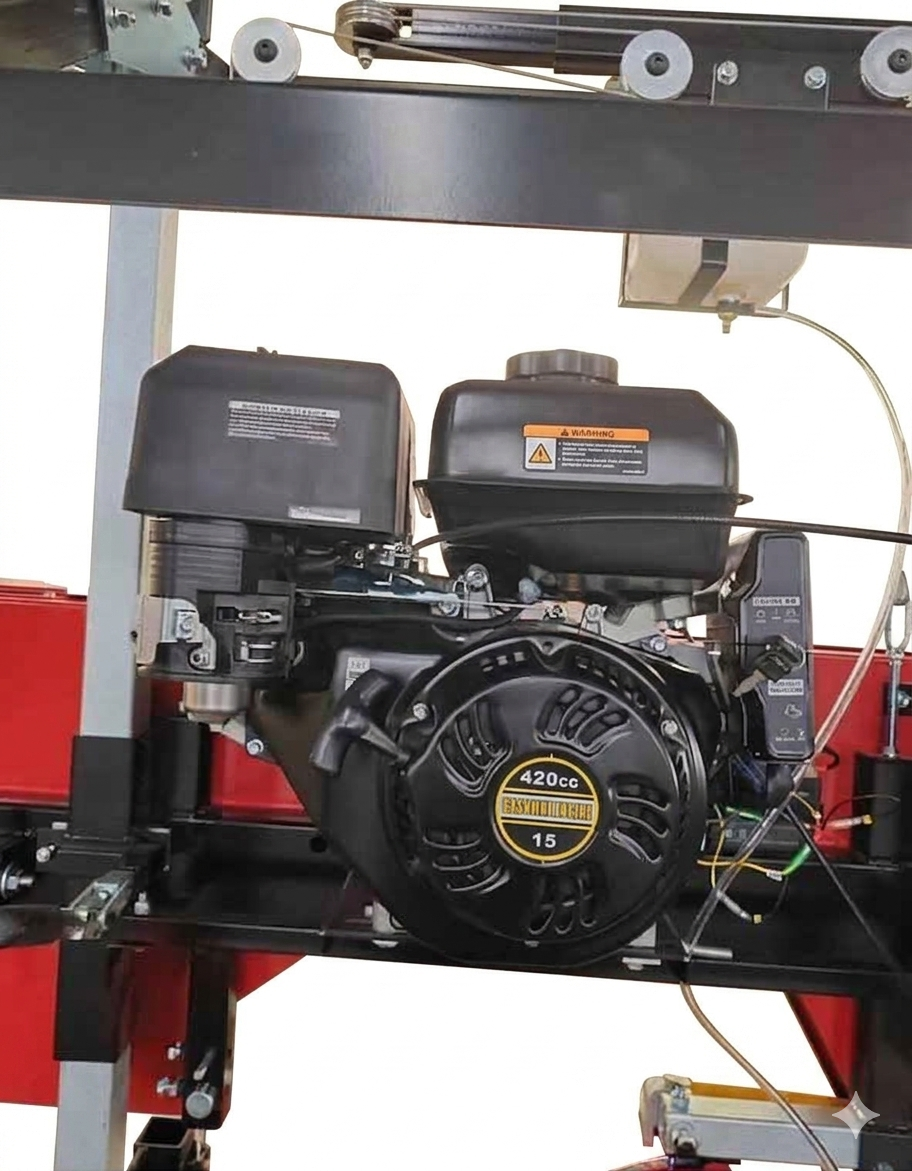

• ENGINE TYPE GASOLINE

• ENGINE POWER (HP) 15

• ENGINE BRAND RATO

• CERTIFICATE EPA, CE

• DISPLACEMENT 420CC

• CAPACITY CUTTING SIZE (MM) 660*180MM (30" * 7")

• MAX LOG DIAMETER (MM) 660

• BLADE SIZE (MM) 3650*24*1.0MM (144" 0.94" 0.04")

• BLADE WHEEL DIAMETER 480MM (19")

• MAX ENGINE SPEED 3600RPM

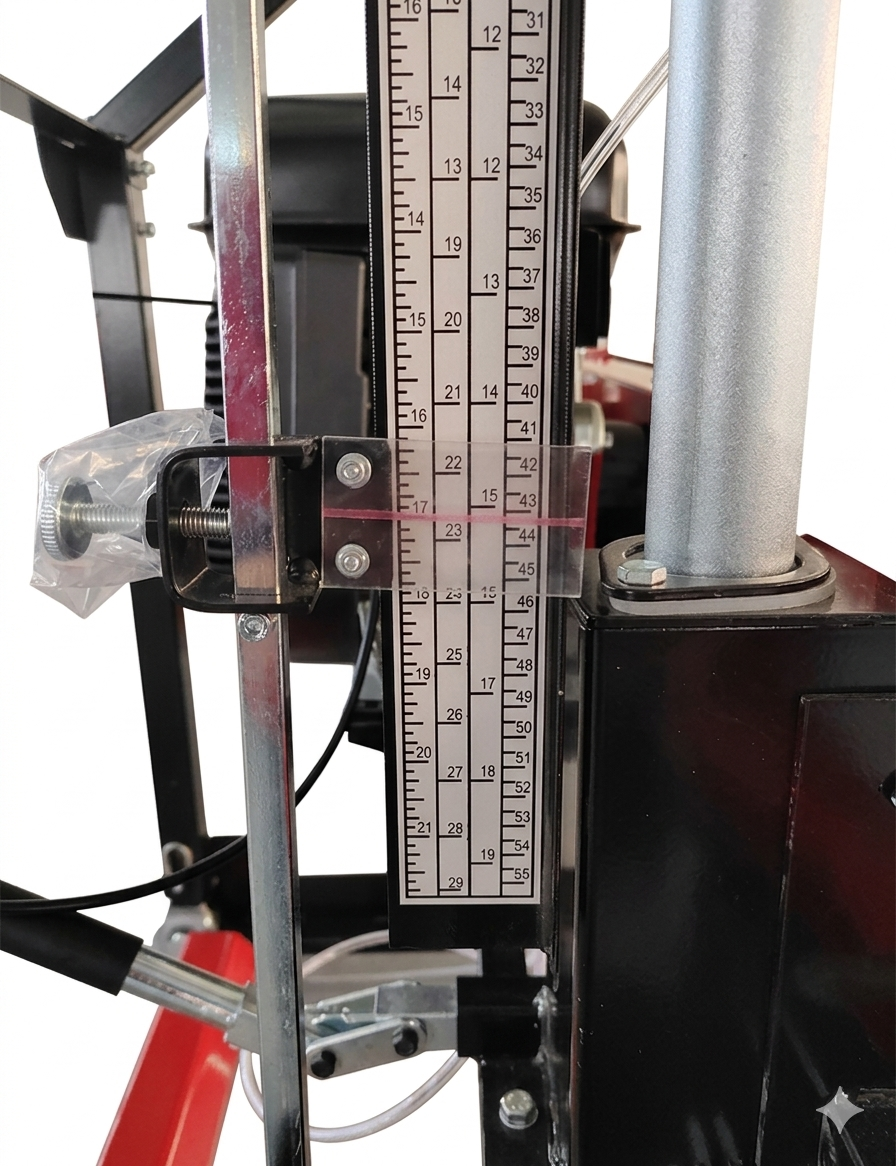

• SAW BLADE MAXIMUM HEIGHT 550MM (21.6")

PACKING INFORMATION

• PACKAGE SIZE - LCL (L*W*H, MM) 2200*645*860MM (86.7" 25.4" 33.8")

• N.W./G.W.(KG) 325/368
